Welding Cable

Voltage: 600V
Conductor: Flexible Copper/Tinned Copper
Insulation: Rubber Compound
Standards: CCC/UL/CE/CNAS/IEC Certificate
*Customized products are supported

Flexible Welding Cable

Model

Description

Core

Cross Section Area

YH

flexible copper conductor, rubber compound insulated, welding cable

single core

10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm²

Voltage: rated to 600Volts

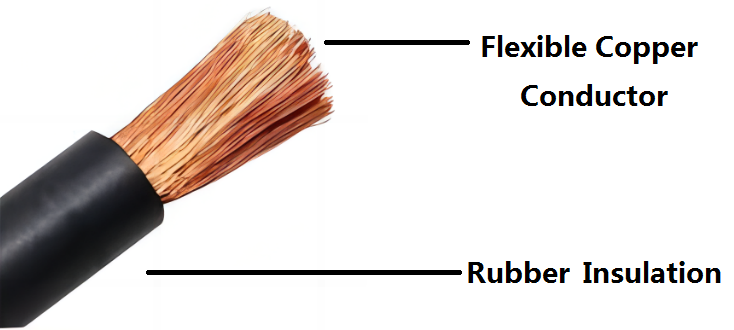

Conductor: flexible copper conductor or Tinned Copper conductor (class 5)
Insulation: rubber compound(Natural Rubber,NBR,EPR,CPE,silicone are optional)

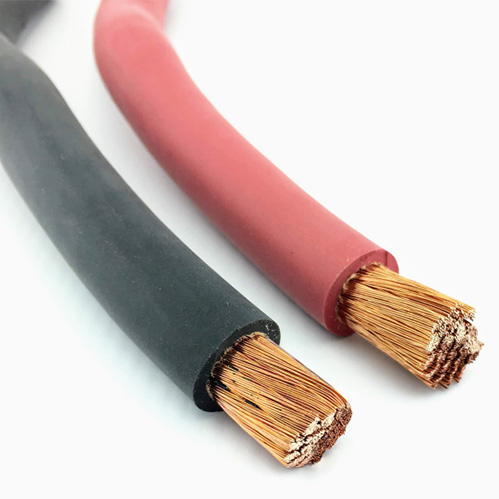

Colors: black, red, orange etc.
Standards: CCC/UL/CE/IEC Certificate

Natural Rubber Material

Min.temperature when installation: 0℃

Service temperature range: -20℃ to +60℃ (fixed and protected installations)

Silicone Rubber Material

Min.temperature when installation: 0℃

SService temperature range: -65℃ to +200℃ (fixed and protected installations)

NBR Material

Min.temperature when installation: 0℃

Service temperature range: -40℃ to +90℃ (fixed and protected installations)

Min.Bending Radius: 6 × D

  • High Purity thick raw materials

    99.99% Copper/99.6% Aluminum Safety,low resistance,stable voltage,more power saving

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity

  • Safer use, Flame Retardant and environment friendly

    All new and high quality sheath,Wear-resistant and oil-resistant, soft and easy to install

  • High cost-effectiveness

    Environment friendly,safer use, better quality, low cost and sooner delivery

  • International standard meet different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC(China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group support you always

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.
