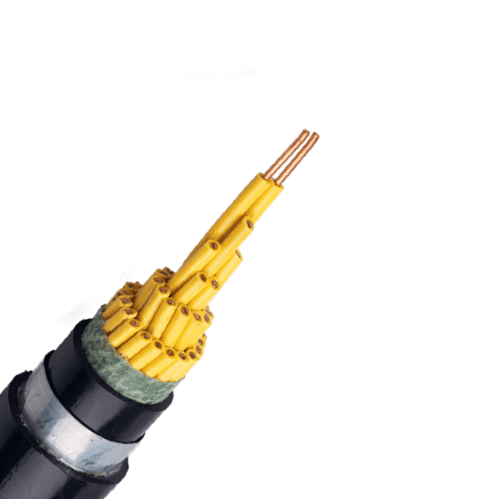

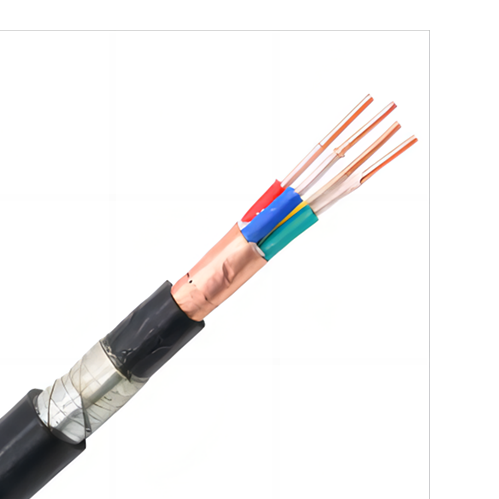

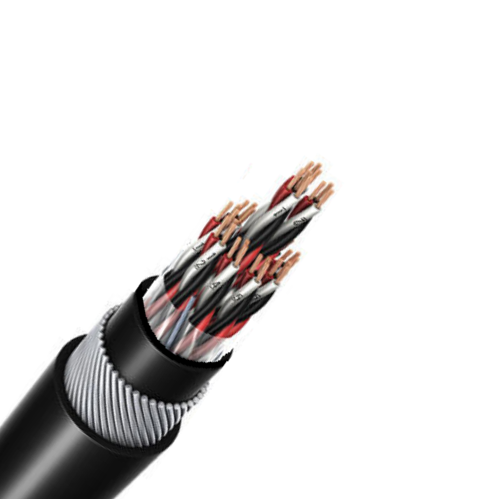

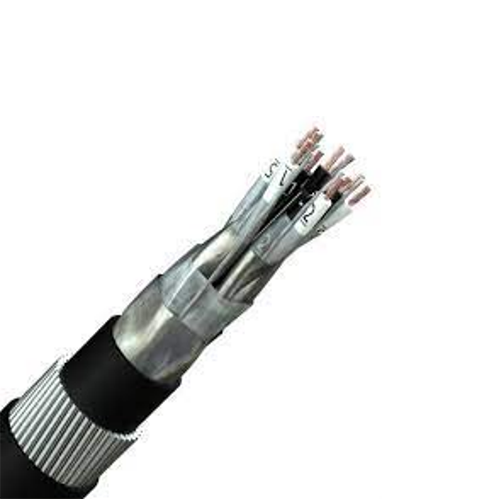

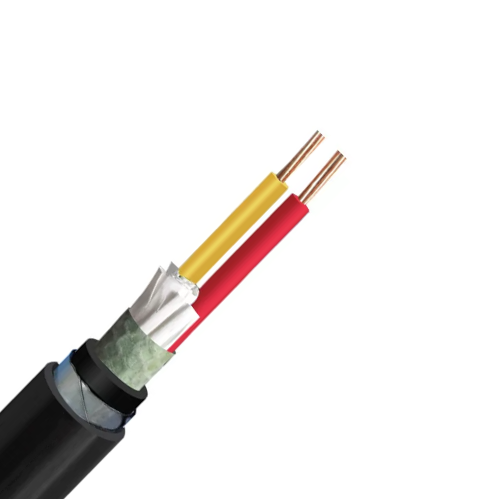

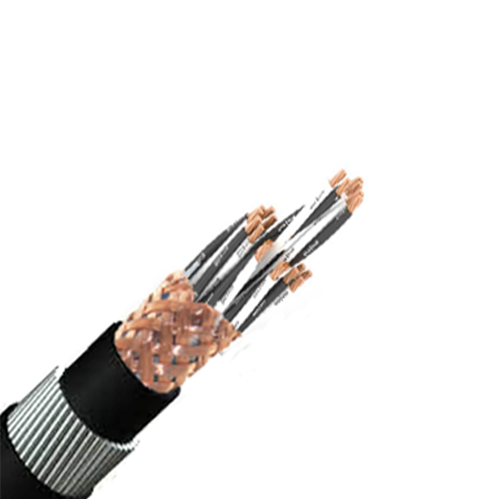

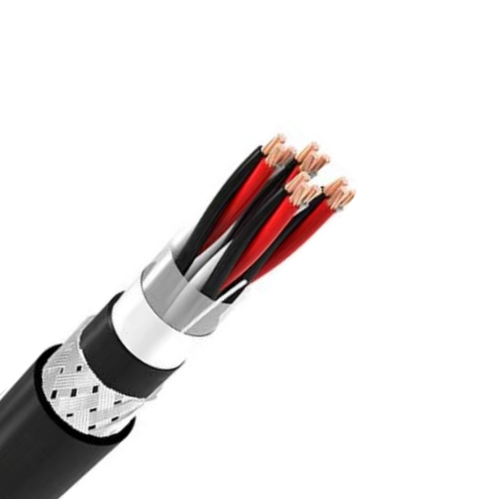

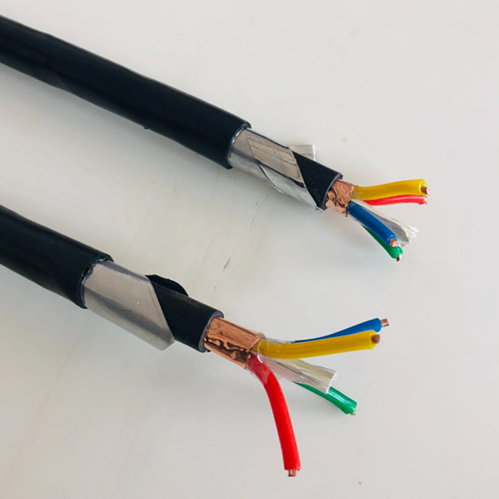

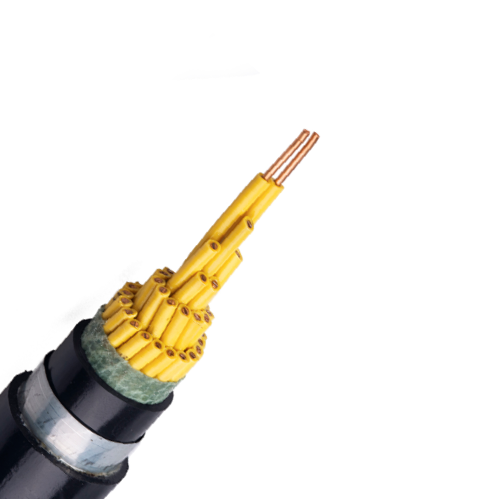

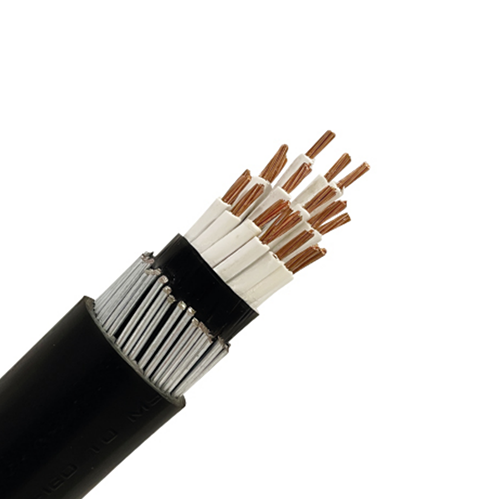

Armoured Control Cable

Voltage: 300/500V, 450/750V, 600/1000v
Conductor: Cu or Tinned copper
Insulation: PVC or XLPE
Sheath: PVC or PE or LSZH
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported

PVC Insulated Armoured Control Cable

Voltage

Models

Description

Cores

Nominal Section
Area

from

450v to 1kV









KVV22

copper conductor, pvc insulated, steel tape armoured, pvc sheathed, control cable

2 core, 3 core, 4 core, 5 core, 7 core, 8 core, 10 core, 12 core, 14 core, 16 core, 19 core, 24 core, 27 core, 30 core, 37 core, 44 core, 52 core, 61 core, or as your request

0.5mm²
0.75mm²
1mm²
1.5mm²
2.5mm²
4mm²
6mm²
10mm²

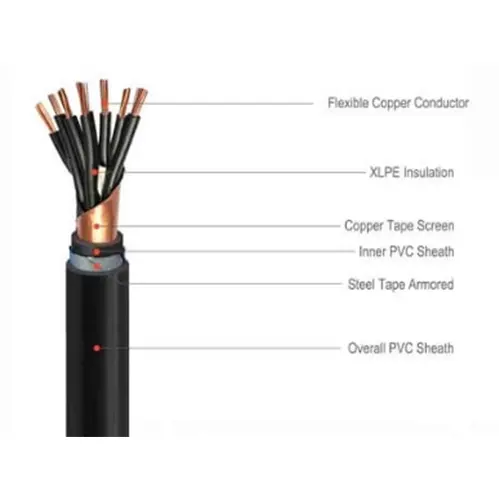

KVVR22

Flexible copper conductor, pvc insulated, steel tape armoured, pvc sheathed, control cable

KVVRP22

flexible copper conductor, pvc insulated, copper wire braided shielded, pvc sheathed, control cable

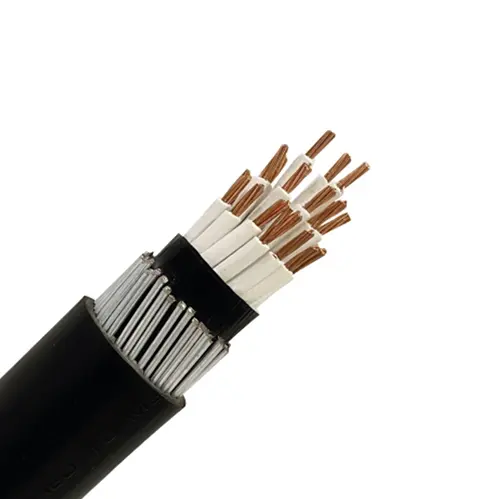

KVV32

copper conductor, pvc insulated, steel wire armoured, pvc sheathed, control cable

KVVP32

Copper conductor, pvc insulated, copper wire braided shielded, steel wire armoured, pvc sheathed, control cable

KVVP232

copper conductor, pvc insulated, copper tape shielded, steel wire armoured, pvc sheathed, control cable

Note: Flame retardant control cable and fire resistant control cable are also available.

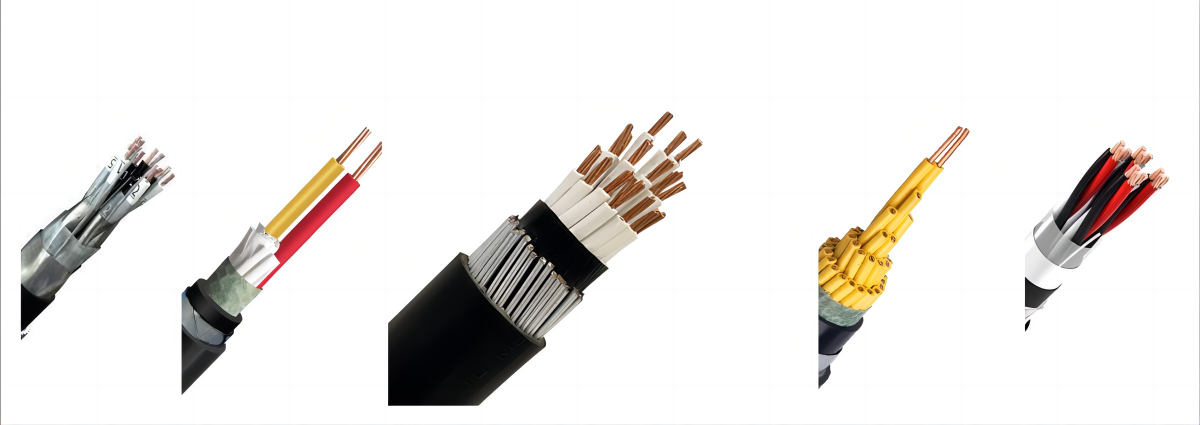

WPS拼图0

Voltage: 300/500V, 450/750V, 600/1000v
Conductor: Copper or Tinned Copper
(solid class1, stranded class2, flexible class5)
Insulation: Polyvinyl chloride (PVC) or Crosslinked Poyethylene (XLPE)

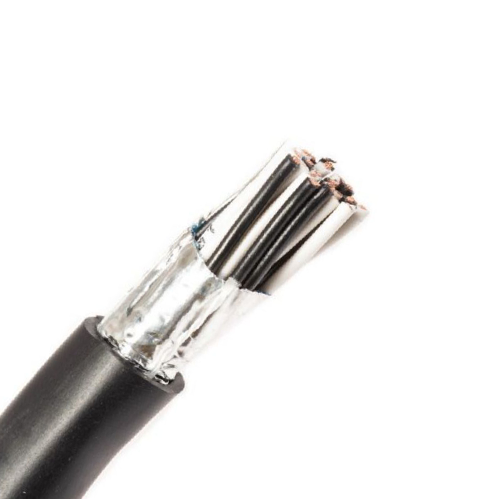

Shield Type (optional): Copper tape shielded (cts)
Copper wire braided shielded (cws)
Aluminum foil shielded
Armour Type: steel tape armoured (sta)
steel wire armoured (swa)
Outer Sheath: Polyvinyl chloride (PVC),
Polyethylene (PE) or LSZH
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *FR, FRLS, LSZH, LSOH, LSHF cables are also available.
*Customized products are supported.

Temperature

XLPE Material:

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃ (max. 5s)

Min. service temperature: -40℃ (fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃ (max. 5s)

Min. service temperature: -40℃ (fixed and protected installations)

Min.Bending Radius

Item

Single Core

Multi core

Unarmored

Armored

Unarmored

Armored

Min. Bending Radius When installation

20D

15D

15D

12D

Minimum bending radius of the cable near the connection box and terminal (bending should be carefully controlled, such as with a formed guide)

15D

12D

12D

10D

* D means overall diameter of cables.

  • High Purity thick raw materials

    99.99% Copper/99.6% Aluminum Safety,low resistance,stable voltage,more power saving

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity

  • Safer use, Flame Retardant and environment friendly

    All new and high quality sheath,Wear-resistant and oil-resistant, soft and easy to install

  • High cost-effectiveness

    Environment friendly,safer use, better quality, low cost and sooner delivery

  • International standard meet different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC(China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group support you always

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.
