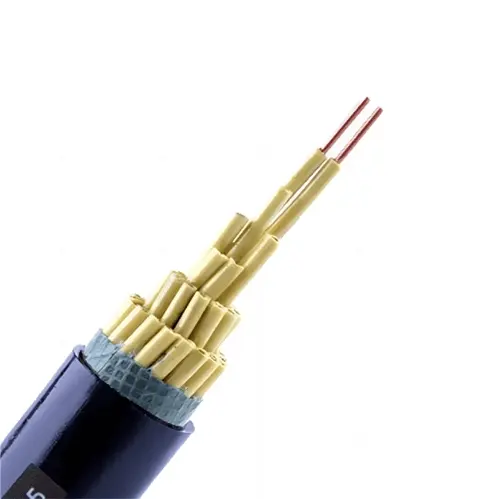

PVC Insulated PVC Sheathed Control Cable |
||||
|
Voltage |
Types |
Description |
Cores |
Nominal Section |
|
300/300V
300/500V
450/750V
0.6/1kV |
KVV |
copper core, pvc insulated, pvc sheathed, control cable |
2 core, 3 core, 4 core, 5 core, 7 core, 8 core, 10 core, 12 core, 14 core, 16 core, 19 core, 24 core, 27 core, 30 core, 37 core, 44 core, 52 core, 61 core, or as your request |
0.2mm² |
|
KVVR |
copper core, pvc insulated, pvc sheathed, flexible control cable |
|||
|
KVV22 |
copper core, pvc insulated, steel tape armoured, pvc sheathed, control cable |
|||
|
KVV32 |
copper core, pvc insulated, steel wire armoured, pvc sheathed, control cable |
|||
|
KVVP |
copper core, pvc insulated, copper wire braided shielded, pvc sheathed, control cable |
|||
|
KVVP2 |
copper core, pvc insulated, copper tape shielded, pvc sheathed, control cable |
|||
|
KVVRP |
copper core, pvc insulated, copper wire braided shielded, pvc sheathed, flexible control cable |
|||
|
Note: Flame retardant control cable and fire rated control cable are also available. |
||||
|
XLPE Insulated PVC Sheathed Control Cable |
||||
|
Voltage |
Types |
Description |
Cores |
Nominal Section |
|
300/300V
300/500V
450/750V
0.6/1kV |
KYJV |
copper core, xlpe insulated, pvc sheathed, control cable |
2 core, 3 core, 4 core, 5 core, 7 core, 8 core, 10 core, 12 core, 14 core, 16 core, 19 core, 24 core, 27 core, 30 core, 37 core, 44 core, 52 core, 61 core, or as your request |
0.2mm² |
|
KYJVR |
copper core, xlpe insulated, pvc sheathed, flexible control cable |
|||
|
KYJV22 |
copper core, xlpe insulated, steel tape armoured, pvc sheathed, control cable |
|||
|
KYJV32 |
copper core, xlpe insulated, steel wire armoured, pvc sheathed, control cable |
|||
|
KYJVP |
copper core, xlpe insulated, copper wire braided shielded, pvc sheathed, control cable |
|||
|
KYJVP2 |
copper core, xlpe insulated, copper tape shielded, pvc sheathed, control cable |
|||
|
KYJVRP |
copper core, xlpe insulated, copper wire braided shielded, pvc sheathed, flexible control cable |
|||
|
Note: Flame retardant control cable and fire rated control cable are also available. |
||||
| Voltage: | 300/300V, 300/500V, 450/750V, 0.6/1kV |
| Conductor: | Annealed Copper or Tinned Copper; (solid core class1, stranded core class2, flexible core class5) |
| Insulation: |
Polyvinyl chloride (PVC) Crosslinked Polyethylene (XLPE) |

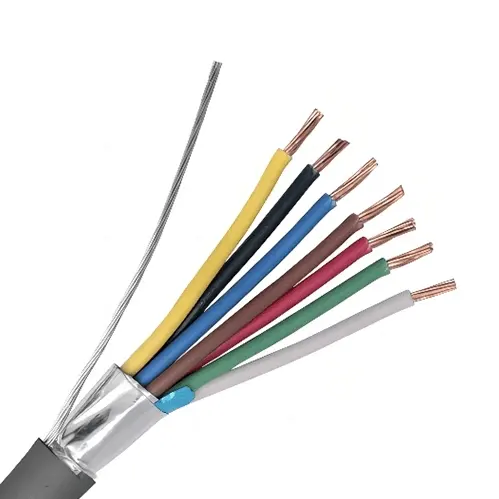

| Shield type (optional): | Copper tape shielded Copper wire braided shielded (cwbs) Aluminum foil shielded |
| Armour Type (optional): | steel tape armoured (sta) steel wire armoured (swa) |
| Outer Sheath: |
Polyvinyl chloride (PVC) LSZH |
| Standards: | IEC/EN/BS/UL/CSA |
| Certifications: | CB Test Certificate/CCC/ISO 9001/ISO 14001 |
| Additional: | Our custom cable services are designed to meet your specific requirements. |
XLPE Material:
Max. service temperature: 90 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 250℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
Max. service temperature: 70 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 160℃(max. 5s)
Min. service temperature: -40℃(fixed and protected installations)
|
Item |
Min.bending radius |
|
Unarmored Control Cable |
Not less than 6D |
|
Armored or Shield Control Cable |
Not less than 12D |
|
Shield Flexible Control Cable |
Not less than 6D |
|
*D means overall diameter of cables |
|
|
