Flat Twin & Earth Cable

Voltage: 0.3/0.5KV 0.45/0.75KV 0.6/1KV
Conductor: Solid/Stranded/Flexible Copper/Alu Conductor
Insulation: Polyvinyl chloride (PVC)
Sheath: PVC or LSZH
Color: Red, Yellow, Blue, Green, Black, White, Yellow/Green etc
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR,FRLS,LSZH,LSOH,LSHF,anti-termite cables are also available.
*Customized products are supported

FLAT ELECTRICAL WIRE : PVC INSULATED PVC SHEATHED CABLE

Voltage

Models

Description

Cores

Nominal Section
Area

from

300v to 600V









BVVB

FLAT TWIN COPPER WIRE

Solid copper conductor, PVC insulated / PVC sheathed

2

0.5mm², 0.75mm²
1mm², 1.5mm²
2.5mm², 4mm²
6mm², 10mm²

16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²

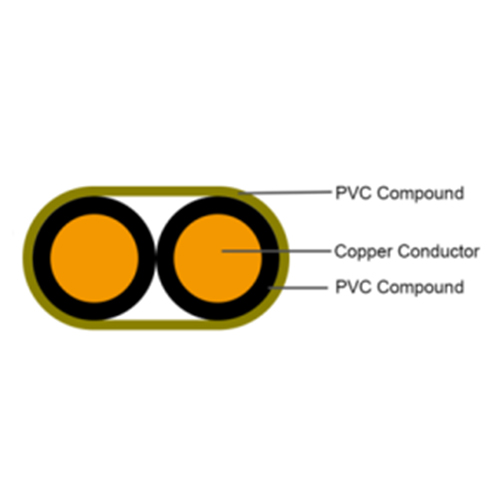

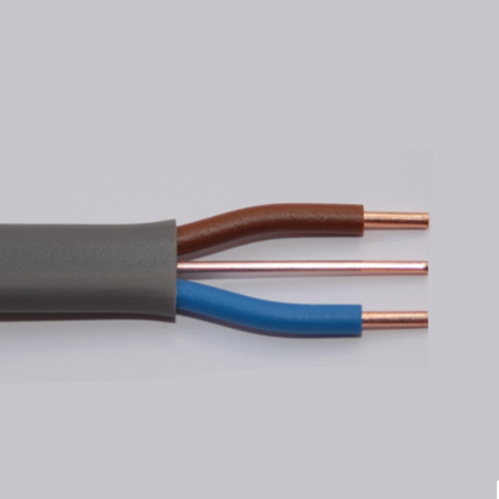

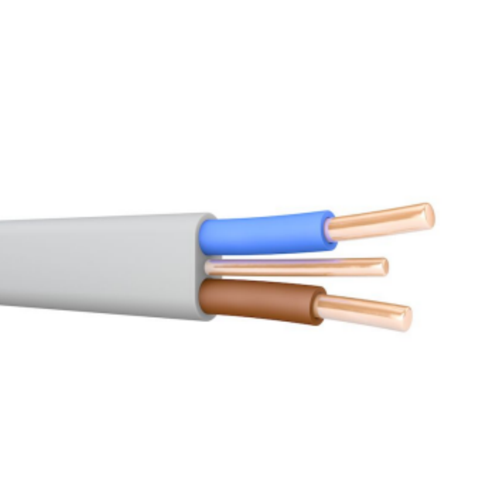

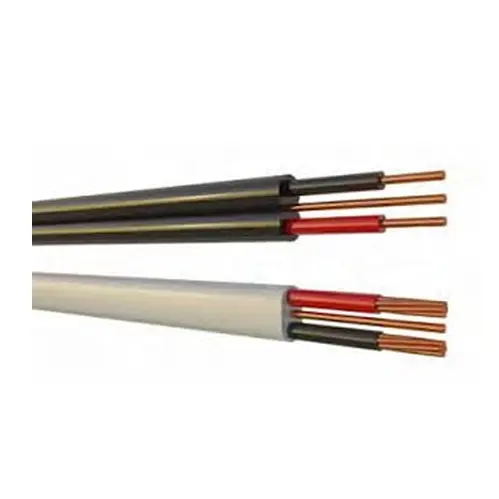

FLAT TWIN AND EARTH CABLE

Solid copper conductor, PVC insulated / PVC sheathed

+ Earth core : Solid bare copper or insulated copper.

2+1

FLAT COPPER WIRE

Solid copper conductor, PVC insulated / PVC sheathed

3-5

RVVB

FLAT TWIN COPPER WIRE

Stranded or Flexible copper conductor, PVC insulated / PVC sheathed

2

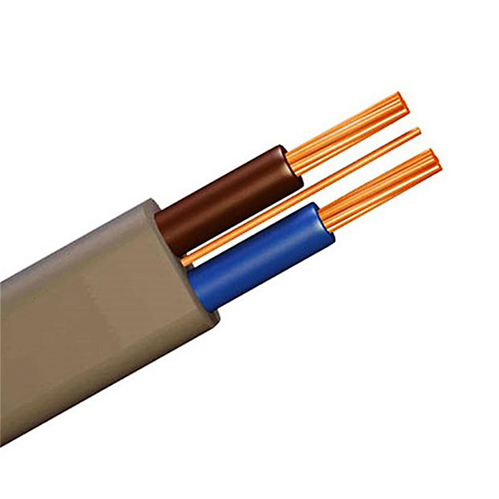

FLAT TWIN AND EARTH CABLE

Stranded or Flexible copper conductor, PVC insulated / PVC sheathed

+ Earth core : Stranded or solid bare copper or insulated copper.

2+1

FLAT COPPER WIRE

Stranded or Flexible copper conductor, PVC insulated / PVC sheathed

3-5

BLVVB

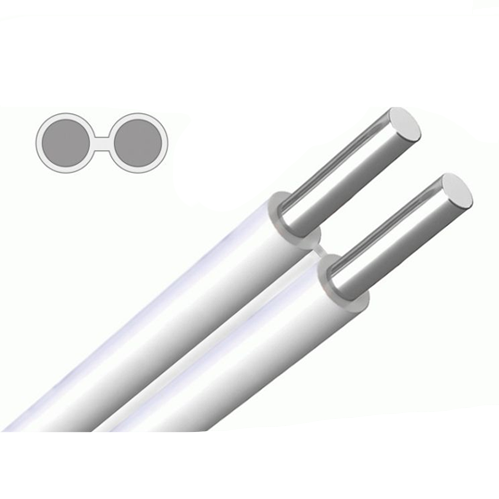

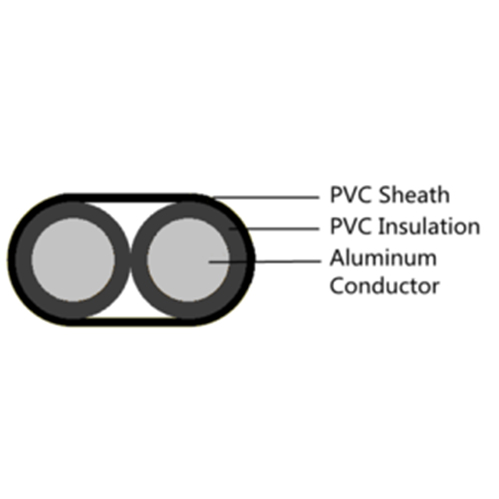

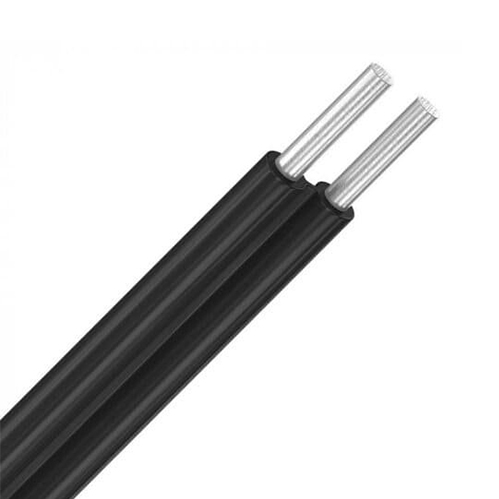

FLAT TWIN AL WIRE

Solid Aluminum conductor, PVC insulated / PVC sheathed

2

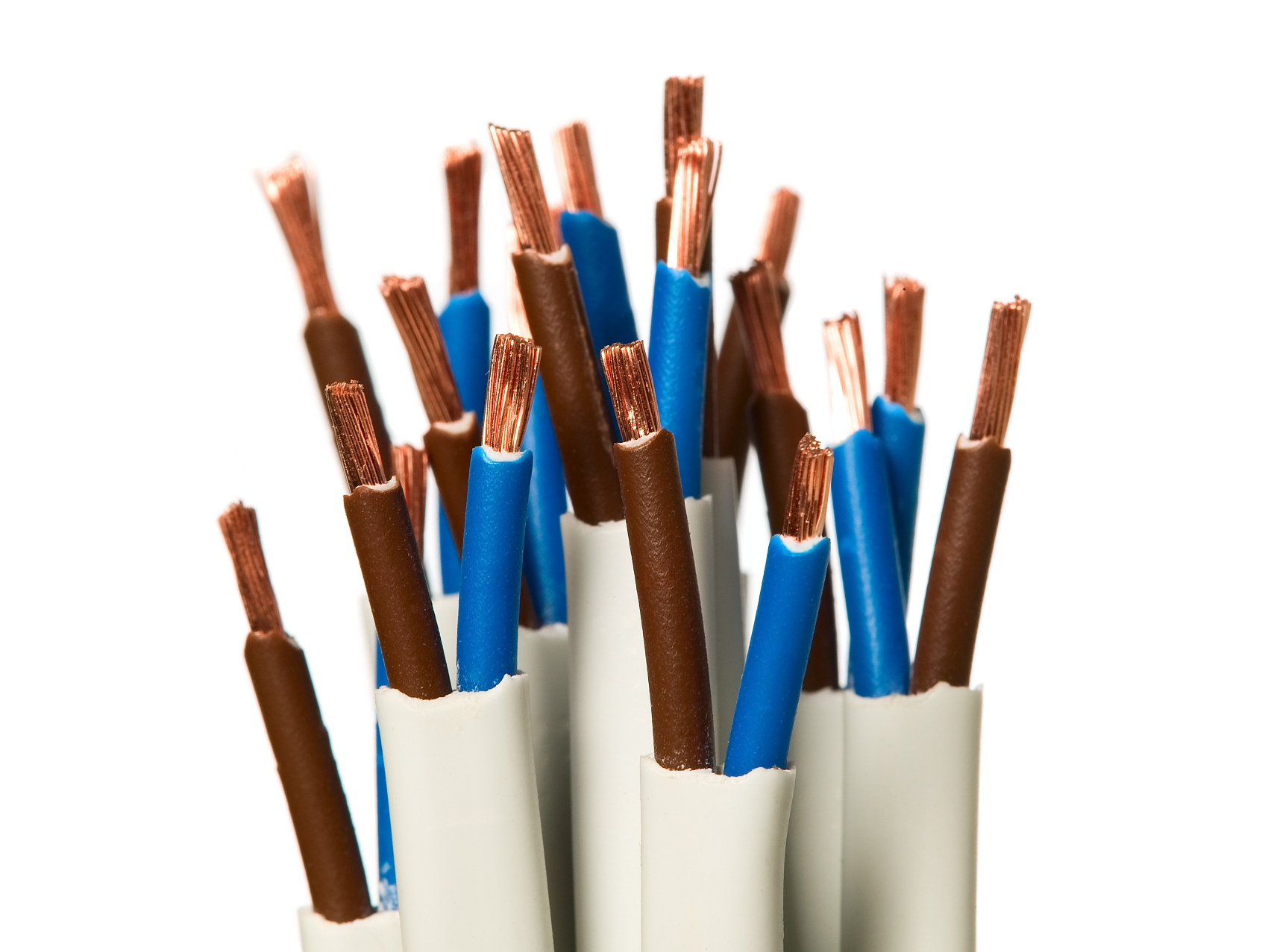

电线的特写

FLAT COPPER/ALU WIRE CABLE

Voltage: 0.3/0.5KV 0.45/0.75KV 0.6/1KV
Conductor: Solid class1 Copper/Alu ;
Stranded class2(optional);
Flexible class5 annealed or Tinned Copper(optional);
Insulation: Polyvinyl chloride (PVC)
Outer Layer: Polyvinyl chloride (PVC)
LSZH (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *FR, FRLS,LSZH, LSOH, LSHF,anti-termite cables are also available.
*Customized products are supported.

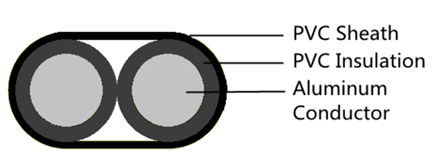

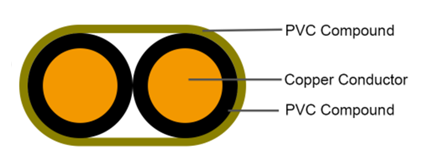

BVVBBLVB

Temperature

PVC Material

Max. service temperature: 70 ℃(90℃ Optional)

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

  • High Purity thick raw materials

    High Purity IEC60228 Raw materials, Safety,low resistance,stable voltage,more power saving

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity

  • Safer use, Flame Retardant and environment friendly

    All new and high quality sheath,Wear-resistant and oil-resistant, soft and easy to install

  • High cost-effectiveness

    Environment friendly,safer use, better quality, low cost and sooner delivery

  • International standard meet different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC(China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group support you always

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.

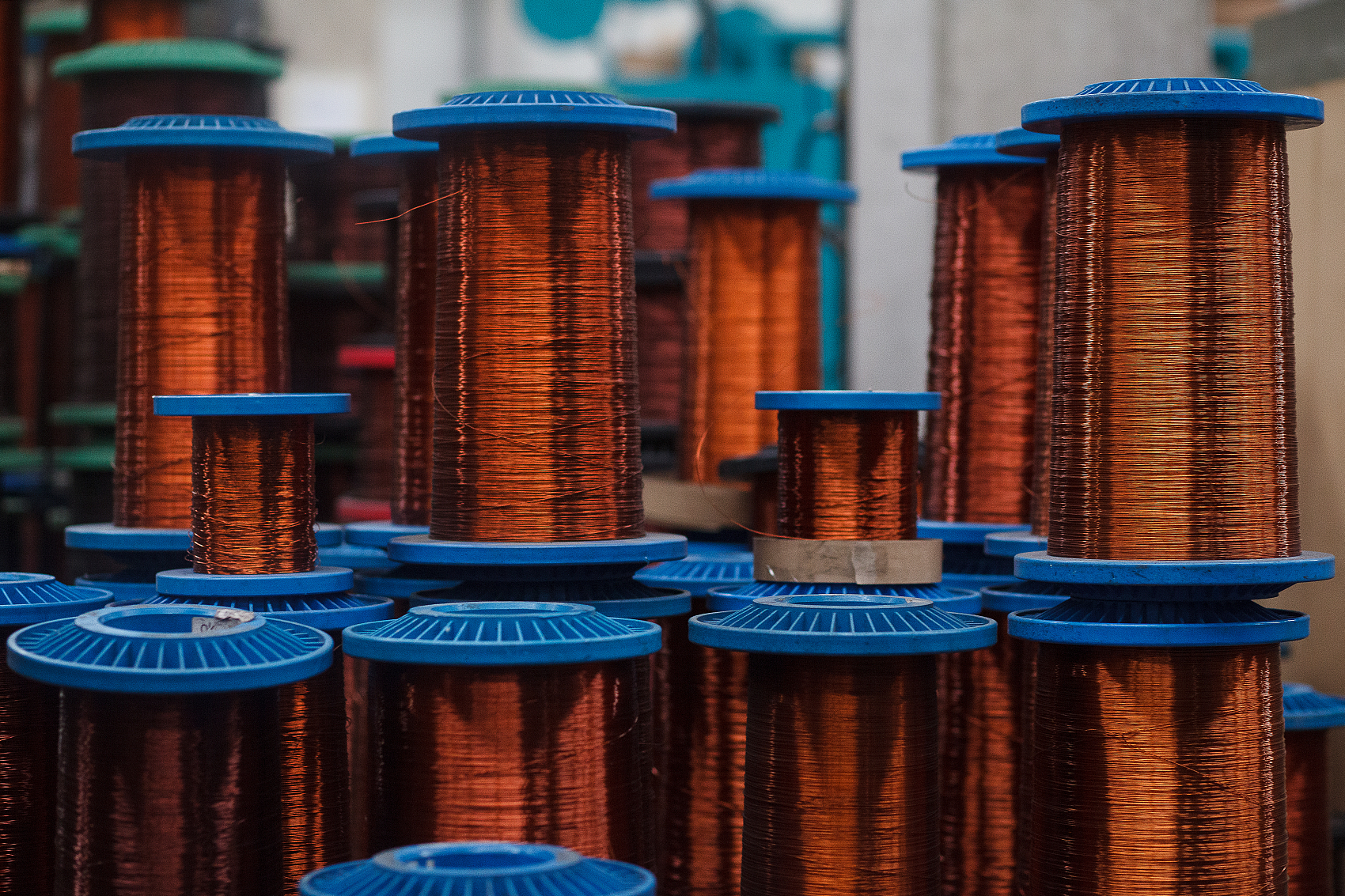

    铜线线圈
