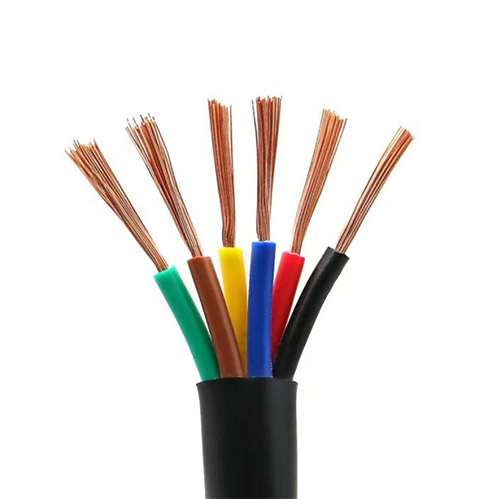

Flexible Control Cable

Voltage: 300/500V, 450/750V, 600/1000v
Conductor: Cu or Tinned Copper (flexible core class5)
Insulation: PVC or XLPE

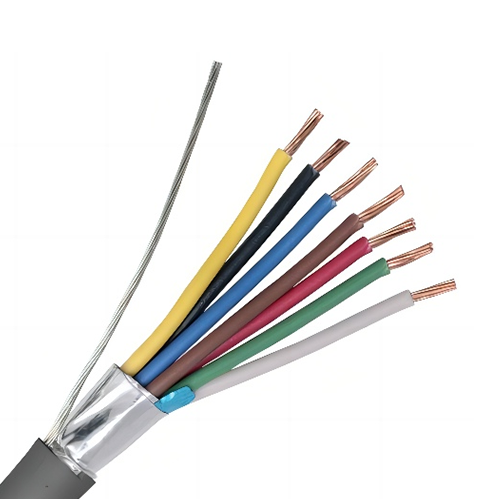

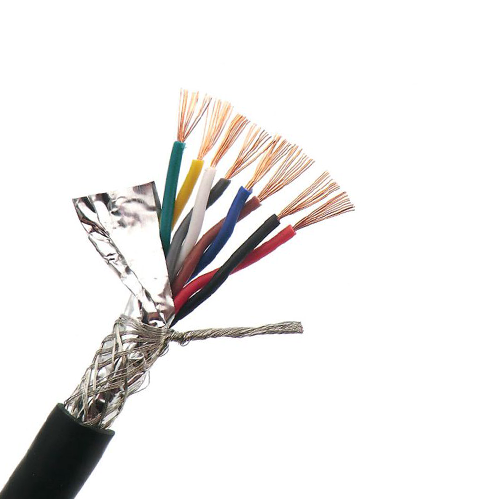

Shield Type (optional): copper tape shielded, copper wire braided shielded (cws), aluminum foil shielded
Armour Type (optional): stell tape armoured (sta), steei wire armoured (swa)
Sheath: PVC or PE or LSZH
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported

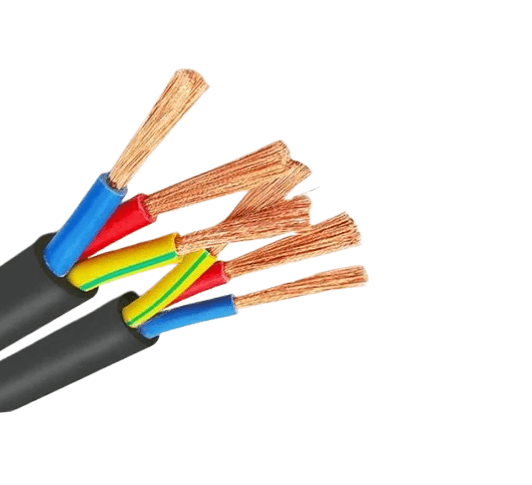

PVC Insulated Flexible Control Cable

Voltage

Models

Description

Cores

Nominal Section
Area

from

450v to 1kV









KVVR

flexible copper conductor, pvc insulated, pvc sheathed, control cable

2 core, 3 core, 4 core, 5 core, 7 core, 8 core, 10 core, 12 core, 14 core, 16 core, 19 core, 24 core, 27 core, 30 core, 37 core, 44 core, 52 core, 61 core, or as your request

0.5mm²
0.75mm²
1mm²
1.5mm²
2.5mm²
4mm²
6mm²
10mm²

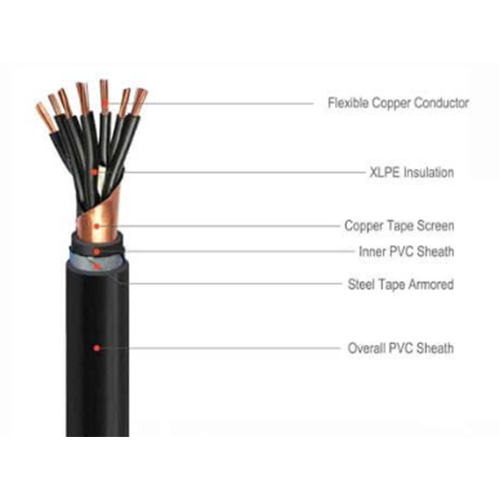

KVVR22

flexible copper conductor, pvc insulated, steel tape armoured, pvc sheathed, control cable

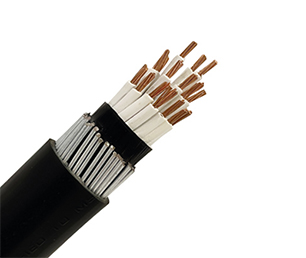

KVVR32

flexible copper conductor, pvc insulated, steel wire armoured, pvc sheathed, control cable

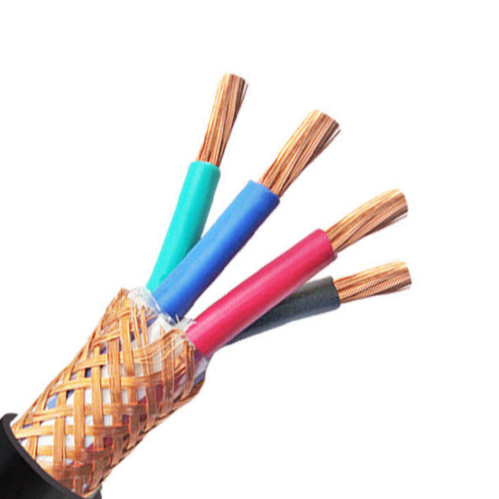

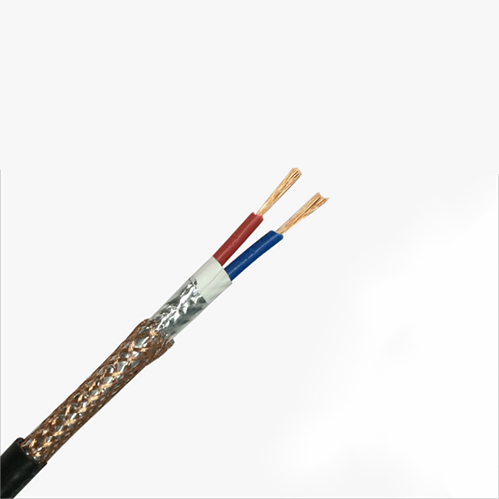

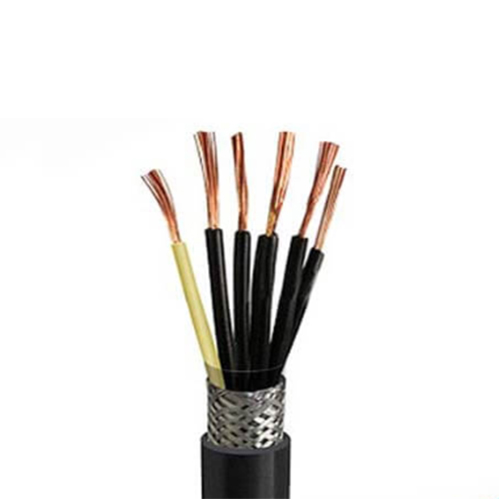

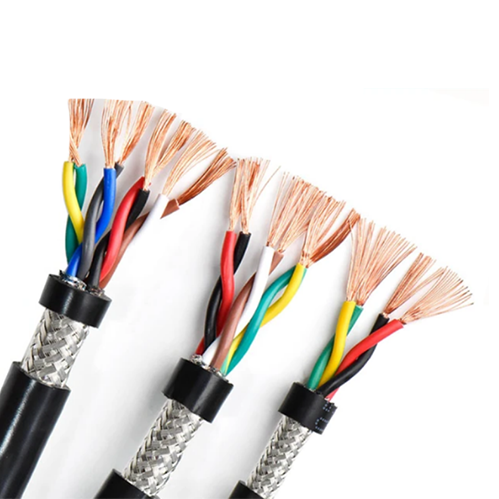

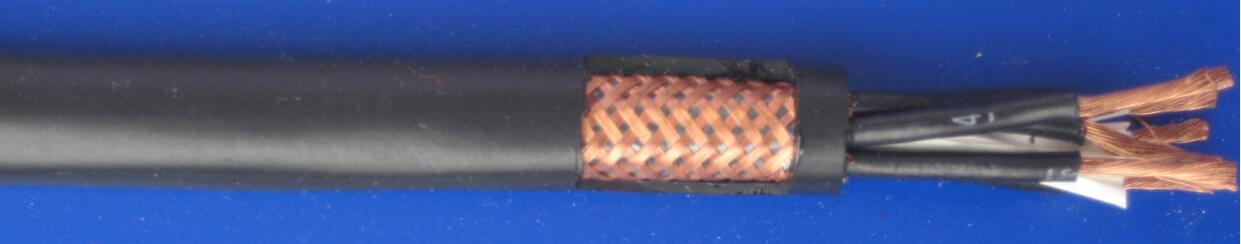

KVVRP

flexible copper conductor,, pvc insulated, copper wire braided shielded, pvc sheathed, control cable

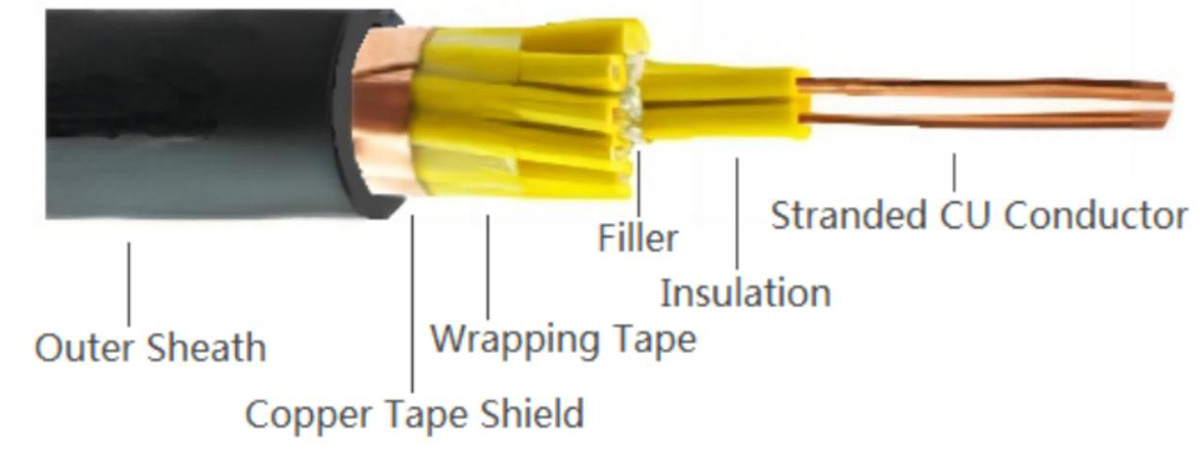

KVVRP2

flexible copper conductor,, pvc insulated, copper tape shielded, pvc sheathed, control cable

Note: Flame retardant control cable and fire resistant control cable are also available.

Voltage: 300/500V, 450/750V, 600/1000v
Conductor: Copper or Tinned Copper
(flexible core class5)
Insulation: Polyvinyl chloride (PVC) or Crosslinked Poyethylene (XLPE)
Shield Type (optional): Copper tape shielded (cts)
Copper wire braided shielded (cws)
Aluminum foil shielded
Armour Type (optional): steel tape armoured (sta)
steel wire armoured (swa)
Outer Sheath: Polyvinyl chloride (PVC),
Polyethylene (PE) or LSZH
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *FR, FRLS,LSZH, LSOH, LSHF cables are also available.
*Customized products are supported.

Temperature

XLPE Material:

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

Min.Bending Radius

Item

Min.bending radius

Unarmored Control Cable

Not less than 6D

Armored or Shield Control Cable

Not less than 12D

Shield Flexible Control Cable

Not less than 6D

*D means overall diameter of cables

  • High Purity thick raw materials

    99.99% Copper/99.6% Aluminum Safety,low resistance,stable voltage,more power saving

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity

  • Safer use, Flame Retardant and environment friendly

    All new and high quality sheath,Wear-resistant and oil-resistant, soft and easy to install

  • High cost-effectiveness

    Environment friendly,safer use, better quality, low cost and sooner delivery

  • International standard meet different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC(China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group support you always

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.

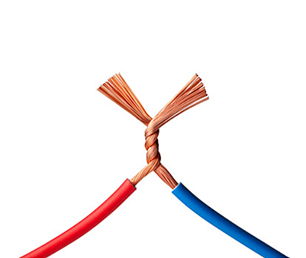

What's the differences between flexible core control cables and solid core control cables?

A: There are obvious differences between flexible core control cables and solid core control cables in terms of structure, current transmission capacity, mechanical properties and application fields.

When choosing which type of cable to use, comprehensive considerations need to be made based on the specific use environment and needs.

For example, you can choose solid core control cables when you need to transmit larger currents, and when you need to move or bend frequently, you can choose flexible core control cables.
