Fire Rated Electric Cable

Voltage: 1KV-35KV
Conductor: Copper or Aluminum Conductor
MICA Tape
Insulation: Crosslinked Polyethylene (XLPE) or Polyvinyl chloride (PVC) or Polyethylene (PE)
Armour Type (optional): sta, swa, awa
Outer Sheath: PVC or PE
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported.

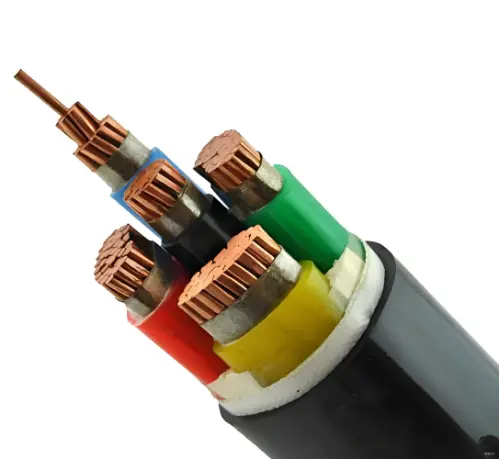

O.6/1kV Fire Rated Cable/Fire Proof Cable/Fire Resistant PVC Cable

Models

Description

Cores

Cross Section Area

Cu/mica/pvc/pvc

copper core, mica tape, pvc insulated,
pvc sheathed cable

1 core
2 cores
3 cores
4 cores
5 cores
3+1 cores
3+2 cores
4+1 cores

0.5~1000mm2

Al/mica/pvc/pvc

Aluminum core, mica tape, pvc insulated,
pvc sheathed cable

Cu/mica/pvc/sta/pvc

copper core, mica tape, pvc insulated, steel tape armoured,
pvc sheathed cable

4~1000mm2

Al/mica/pvc/sta/pvc

aluminum core, mica tape, pvc insulated, steel tape armoured,
pvc sheathed cable

Cu/mica/pvc/swa/pvc

copper core, mica tape, pvc insulated, steel wire armoured,
pvc sheathed cable

Al/mica/pvc/swa/pvc

aluminum core, mica tape, pvc insulated, steel wire armoured,
pvc sheathed cable

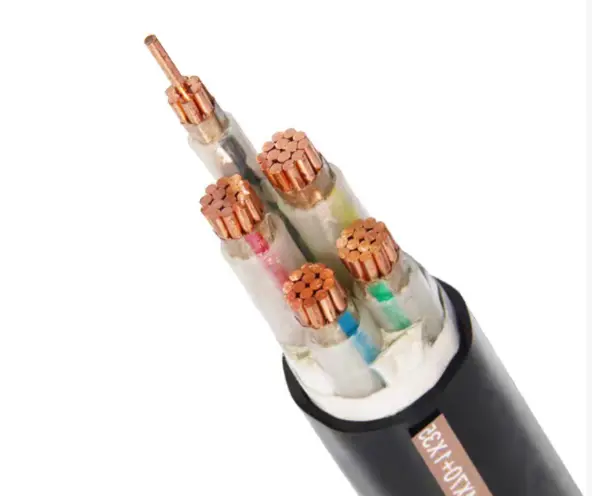

O.6/1kV Fire Rated Cable/Fire Proof Cable/Fire Resistant XLPE Cable

Models

Description

Cores

Cross Section Area

Cu/mica/xlpe/pvc

copper core, mica tape, xlpe insulated,
pvc sheathed cable

1 core
2 cores
3 cores
4 cores
5 cores
3+1 cores
3+2 cores
4+1 cores

0.5~1000mm2

Al/mica/xlpe/pvc

Aluminum core, mica tape, xlpe insulated,
pvc sheathed cable

Cu/mica/xlpe/sta/pvc

copper core, mica tape, xlpe  insulated, steel tape armoured,
pvc sheathed cable

4~1000mm2

Al/mica/xlpe/sta/pvc

aluminum core, mica tape, xlpe  insulated, steel tape armoured,
pvc sheathed cable

Cu/mica/xlpe/swa/pvc

copper core, mica tape, xlpe  insulated, steel wire armoured,
pvc sheathed cable

Al/mica/xlpe/swa/pvc

aluminum core, mica tape, xlpe  insulated, steel wire armoured,
pvc sheathed cable

Low Voltage Fire Rated Cable Structure

Voltage: 1kV
Conductor: Copper or Aluminum Conductor
(solid class1, stranded class2, flexible5 )
MICA Tape: ---
Insulation: Crosslinked Polyethylene (XLPE)
Polyvinyl Chloride (PVC) (optional)
Polyethylene (PE) (optional)
Armour Type (optional): steel tape armoured (sta)
steel wire armoured (swa)
aluminum wire armoured (awa)
Outer Sheath: Polyvinyl Chloride (PVC)
PE (Polyethylene) (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported.

Temperature

XLPE Material:

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃ (max. 5s)

Min. service temperature: -40℃ (fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃ (max. 5s)

Min. service temperature: -40℃ (fixed and protected installations)

Min.Bending Radius

Item

Single Core

Multi core

Unarmored

Armored

Unarmored

Armored

Min. Bending Radius When installation

20D

15D

15D

12D

Minimum bending radius of the cable near the connection box and terminal (bending should be carefully controlled, such as with a formed guide)

15D

12D

12D

10D

* D means overall diameter of cables.

  • High purity thick raw materials

    99.99% Copper/99.6% Aluminum Safety, low resistance, stable voltage, more power saving.

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity.

  • Safer use, flame retardant and environment friendly

    All new and high quality sheath, water-resistant and oil-resistant, soft and easy to install.

  • High cost-effectiveness

    Environment friendly, safer use, better quality, low cost and sooner delivery.

  • International standard meets different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC (China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group supports you always.

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.

Characteristrics of Fire Rated Cables

A:

Fire rated cables are mainly used for high building, subway, plant station and other places where require fire-control. Fire rated cables not only can delivery power with rated voltage 0.6/1kV also would remain working safely for 90mins in the case of 950-1000℃ high temperature flames burning. Thus it can be seen that fire rated cables have the higher safety factor than non-fire resistant cables.
