Huanghe Cable manufactures EPR-insulated, neoprene-sheathed flexible rubber cables including H07RN-F (450/750V) and H05RN-F (300/500V) for construction sites, mining equipment, industrial machinery and portable power connections. Welding cables and custom specifications also available.
Huanghe Cable supplies different rubber cable types for industrial and flexible applications, including H07RN-F (up to 450/750V and 0.6/1kV heavy-duty variants), welding cables, and customized rubber insulated power cables. Different conductor sizes, core numbers and voltage ratings can be produced according to project requirements.
| Model | Voltage Rating | Core | Cross Section | Insulation | Sheath | Application |
|---|---|---|---|---|---|---|

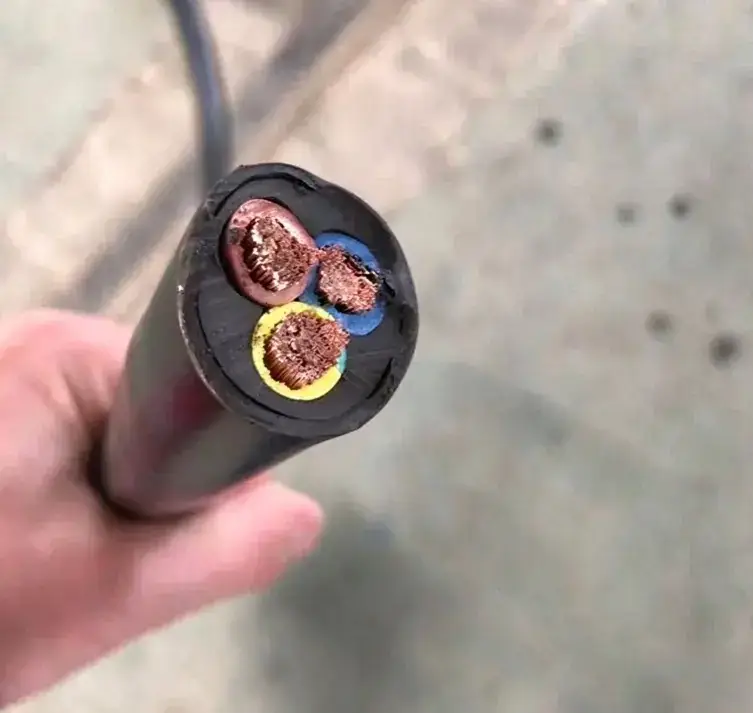

| H07RN-F (Standard) | 450/750V | 1-5 Cores | 1.5-240mm² | EPR/EPDM | CR (Neoprene) | Heavy-duty industrial equipment |
| H07RN-F (0.6/1kV Heavy-Duty) | 0.6/1kV | 1-5 Cores | 2.5-300mm² | EPR/EPDM | CR (Neoprene) | Power distribution & mobile machinery |
| H05RN-F | 300/500V | 2-5 Cores | 0.75-6mm² | EPR/EPDM | CR (Neoprene) | Portable tools & outdoor equipment |
| H05RR-F | 300/500V | 2-5 Cores | 0.75-2.5mm² | Natural Rubber | Natural Rubber | Flexible indoor applications |

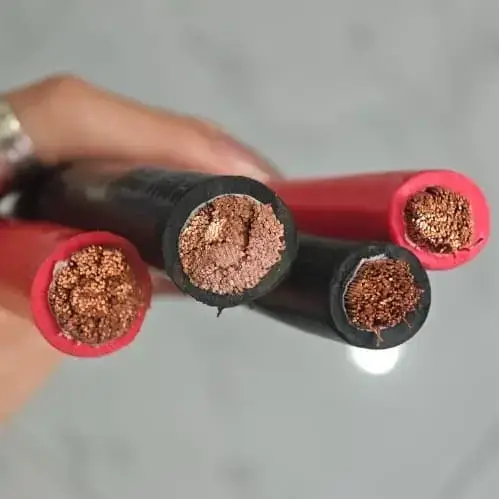

| Welding Cable (H01N2-E) | Welding circuit | Single Core | 10-120mm² | EPR | CR (Neoprene) | Welding machine leads |
Designed with flexible copper conductors, specialized elastomeric insulation, and durable sheaths to meet industrial and mobile equipment requirements.
Huanghe rubber cables are engineered with EPR/EPDM insulation and neoprene sheaths to deliver reliable performance in demanding industrial environments. Below are the key performance properties that our customers specify when sourcing rubber flexible cables.
Fine-stranded annealed copper conductors (Class 5 or Class 6) allow smooth movement and repeated bending without conductor breakage — ideal for portable tools, moving machinery and cable reels.
Heavy-duty neoprene (CR) outer sheath provides excellent resistance to mechanical impact, abrasion and tearing. Suitable for construction sites, mining tunnels, factory floors and other rough-service environments.
The neoprene outer sheath withstands exposure to mineral oils, lubricating greases, diesel fuel and common industrial chemicals. A key requirement for machine tool wiring, welding stations and workshop environments.
EPR insulation and UV-stabilized neoprene sheath are engineered for prolonged outdoor exposure. The cable maintains its mechanical and electrical properties under direct sunlight, ozone and varying weather conditions.
Rubber cable compounds are formulated to be self-extinguishing. In the event of a fire, the cable will not sustain flame propagation once the ignition source is removed — an important safety requirement for industrial and commercial installations.
Available in multiple voltage ratings (300/500V to 0.6/1kV) with flexible core counts (1 to 5+), conductor materials (annealed copper or tinned copper) and sheath colors. Custom constructions can be designed for specific project requirements.
As a cable manufacturer established in 1980, Huanghe Cable controls the production process from conductor preparation to finished cable inspection to ensure stable rubber cable quality for different applications.
Our production system supports rubber cable manufacturing for industrial equipment, power connection and customized applications.
Copper conductivity test, rubber compound hardness & tensile test.
Diameter monitoring, spark testing, thickness measurement.
Conductor resistance (IEC 60228), high voltage withstand test, insulation resistance.
Factory test reports, material certificates, third-party inspection support.
Need rubber cable from a direct manufacturer? Send your specification or application details to Huanghe Cable for technical review and factory quotation.
As a direct manufacturer with 40+ years of experience in rubber cable production, we combine technical capability, quality control and export service to support industrial and construction projects worldwide.
40+ years of rubber cable production experience. In-house control over conductor selection, insulation compound formulation, extrusion and final testing — no middlemen, no communication gaps.
From 0.75 mm² flexible cords to 300 mm² heavy-duty power cables. Single-core to 5-core configurations, with both annealed copper and tinned copper conductor options.
Exported to 30+ countries across Southeast Asia, the Middle East, Africa and South America. Familiar with IEC, VDE and regional project requirements.

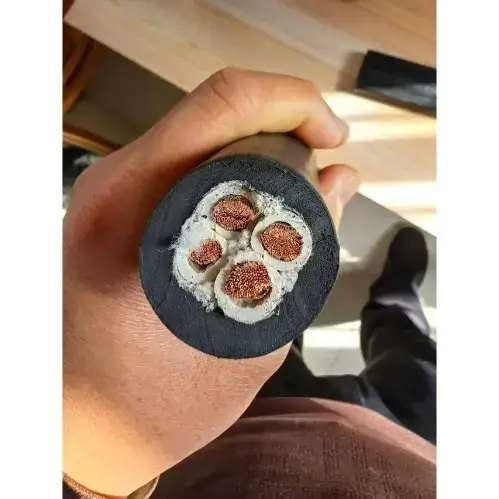

Tailored cable designs with flexible core counts (1 to 5+), conductor materials (Cu / tinned Cu), insulation types (EPR, EPDM) and sheath options (CR neoprene, CPE). Custom colors and core identification available.
Every drum tested before shipment: conductor resistance (IEC 60228), high-voltage withstand, insulation resistance and dimensional checks. Third-party inspection (SGS, BV) welcome.
Response within 2 Hours for Urgent Inquiries. Standard production lead time: 7–15 days. FOB, CIF and other trade terms available. Complete export documentation provided.
Send your cable voltage, conductor size, core number, application environment or project specification. Huanghe Cable can review your requirements and provide a suitable factory quotation.
What types of rubber cables can Huanghe Cable supply?
Huanghe Cable supplies different rubber cable solutions, including H07RN-F, H05RN-F, H05RR-F, welding cables and customized rubber insulated cables for industrial applications.
Can Huanghe Cable customize rubber cable specifications?
Yes. Rubber cable specifications can be customized according to customer requirements, including conductor type, core number, cross section, voltage rating, cable structure and packaging.
What conductor sizes and core configurations are available for rubber cables?
Huanghe Cable supports rubber cables with different conductor sizes and core configurations, including single core and multi-core designs. Specific ranges depend on cable model and application requirements.
What tests are conducted before rubber cable delivery?
Spark test, conductor resistance test, insulation resistance, and water immersion test.
How can customers request a rubber cable quotation?
Customers can send cable model, specifications, quantity, application requirements or technical documents to Huanghe Cable. Our team will provide suitable cable solutions and quotation support.
