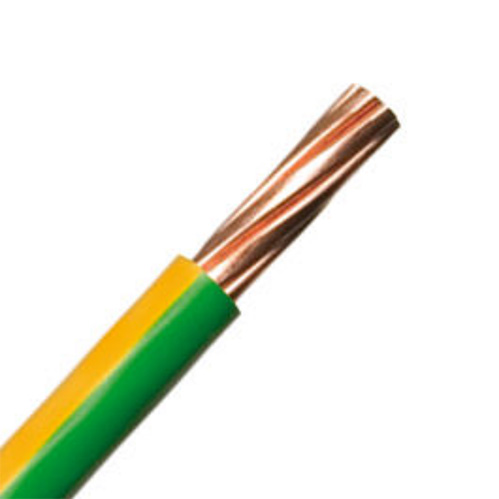

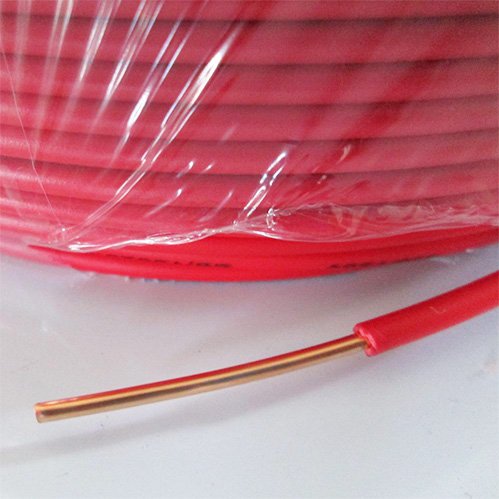

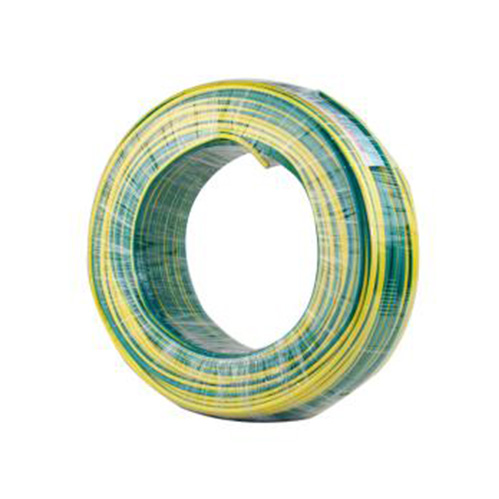

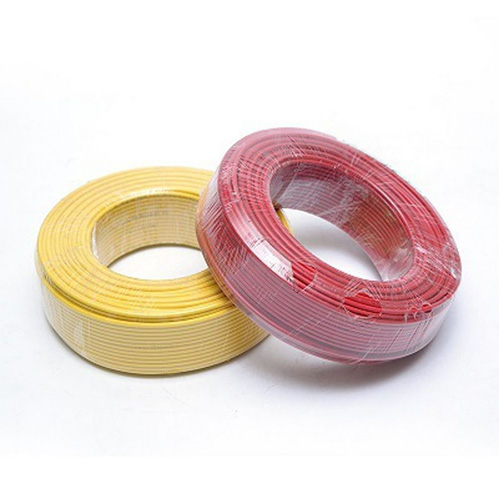

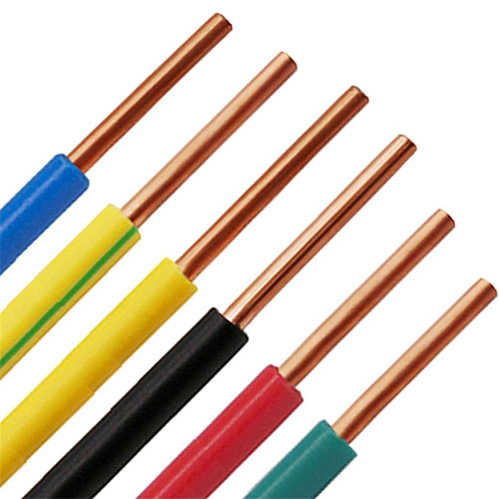

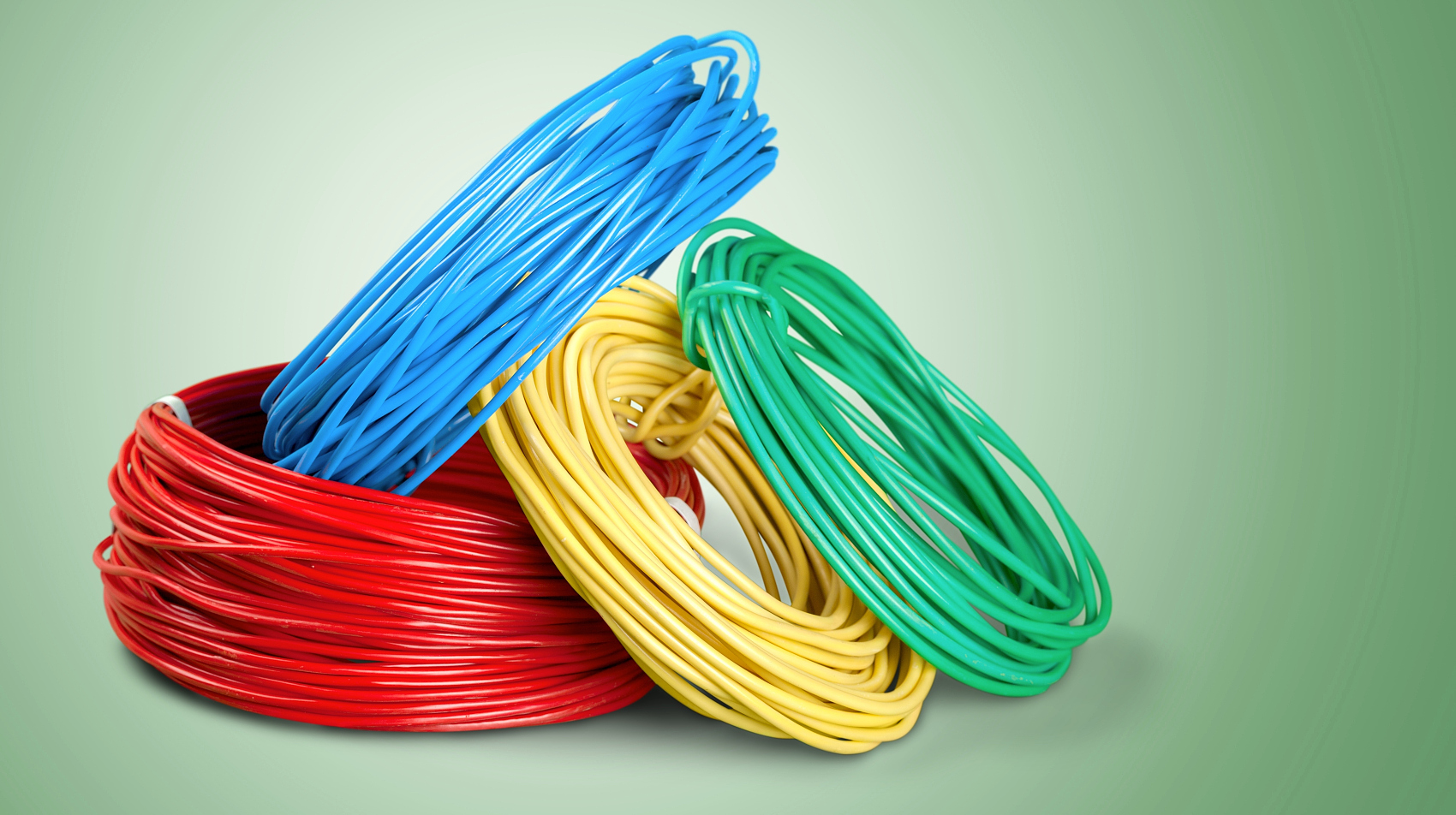

Solid Core PVC Wire Cable

Voltage: 0.3/0.5KV 0.45/0.75KV 0.6/1KV
Conductor: CU or AL
Sheath: PVC or XLPE or LSZH
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR,FRLS,LSZH,LSOH,LSHF,anti-termite cables are also available.
*Customized products are supported

PVC Insulated Solid Core PVC Wire Cable

Voltage

Models

Description

Cores

Nominal Section
Area

from 300v to 600V

BV

copper conductor, pvc insulated

single core

0.5mm², 0.75mm²
1mm², 1.5mm²
2.5mm², 4mm²
6mm², 10mm²

16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²

BLV

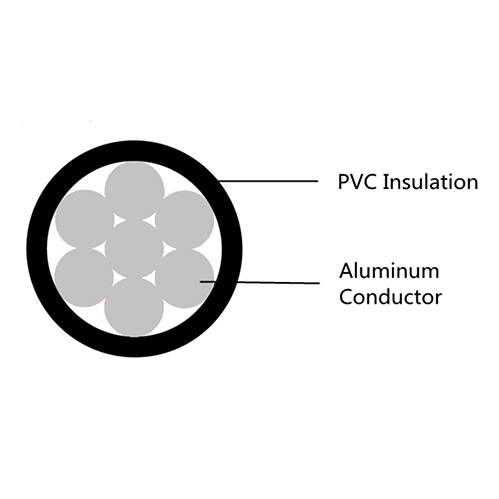

aluminum conductor, pvc insulated

SOLID CORE PVC WIRE CABLE

Voltage: 0.3/0.5KV 0.45/0.75KV 0.6/1KV

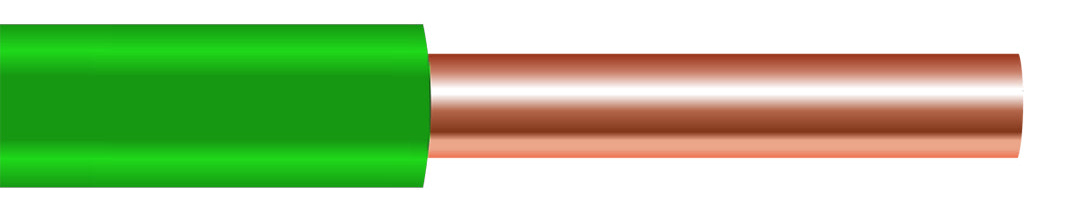

Conductor: Solid class1 Copper or Aluminum or Tinned Copper

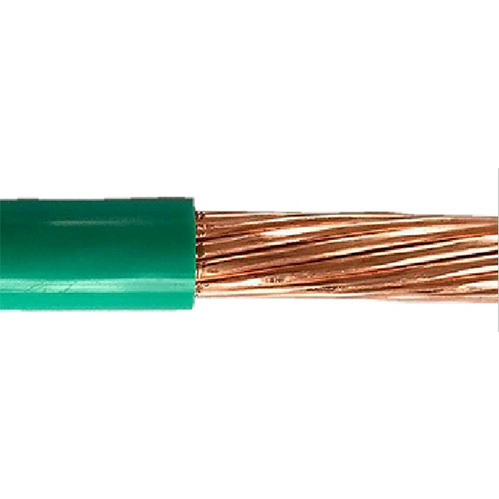

stranded class2(optional);
Flexible class5(optional);
Outer Layer: Polyvinyl chloride (PVC)
XLPE (crosslinked polyethylene) (optional)
LSZH (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *FR, FRLS,LSZH, LSOH, LSHF,anti-termite cables are also available.
*Customized products are supported.

Temperature

XLPE Material:

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

  • High Purity thick raw materials

    High Purity IEC60228 Raw materials, Safety,low resistance,stable voltage,more power saving

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity

  • Safer use, Flame Retardant and environment friendly

    All new and high quality sheath,Wear-resistant and oil-resistant, soft and easy to install

  • High cost-effectiveness

    Environment friendly,safer use, better quality, low cost and sooner delivery

  • International standard meet different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC(China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group support you always

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.电缆。(1)
