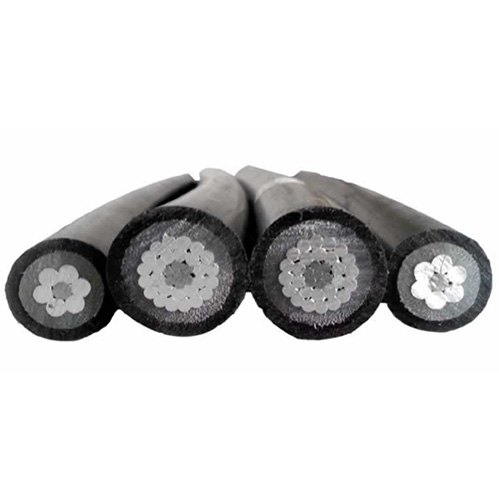

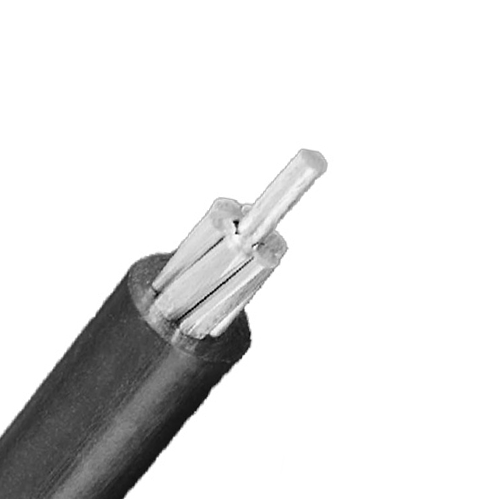

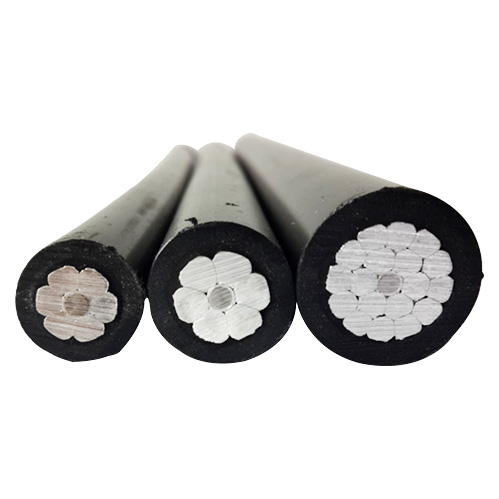

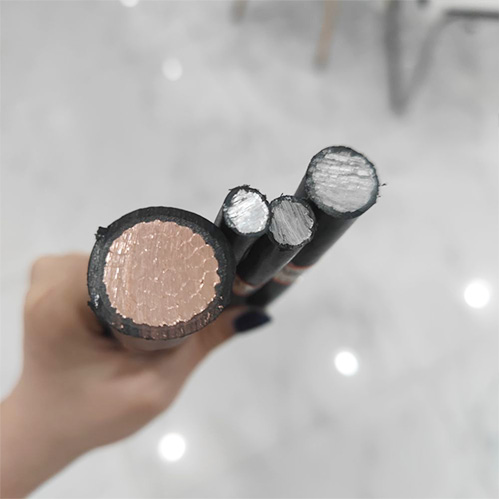

Single Core Overhead Cable

Voltage: 0.6/1KV 10KV
Conductor: Steel Core Aluminum/Aluminum Alloy Core
Insulation: XLPE or PVC or PE
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR,FRLS,LSZH,LSOH,LSHF,anti-termite cables are also available.
*Customized products are supported

Single Core Overhead Cable

Voltage

Models

Description

Cross Section Area

1kV,

11kV,

33kv

JKLYJ

aluminum conductor,

xlpe  insulated,

single core overhead cable

10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²

JKLV

aluminum conductor,

pvc  insulated,

single core overhead cable

JKYJ

copper conductor,

xlpe  insulated,

single core overhead cable

JKV

copper conductor,

pvc  insulated,

single core overhead cable

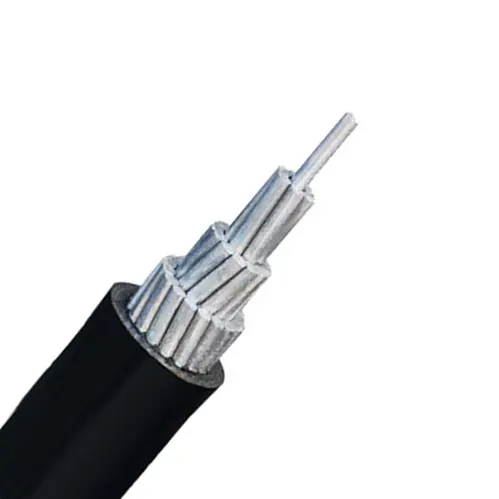

SINGLE CORE OVERHEAD CABLE

Voltage: 0.6/1KV 10KV
Conductor: Aluminum Conductor Class2;
Aluminum Conductor Steel Reinforced Class2;(optional)
Aluminum Alloy Core (optional)
Insulation: Crosslinked Polyethylene (XLPE)
PVC (optional)
PE (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *Customized products are supported.

Temperature

XLPE Material:

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

  • High Purity thick raw materials

    99.99% Copper/99.6% Aluminum Safety,low resistance,stable voltage,more power saving

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity

  • Safer use, Flame Retardant and environment friendly

    All new and high quality sheath,Wear-resistant and oil-resistant, soft and easy to install

  • High cost-effectiveness

    Environment friendly,safer use, better quality, low cost and sooner delivery

  • International standard meet different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC(China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group support you always

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.
