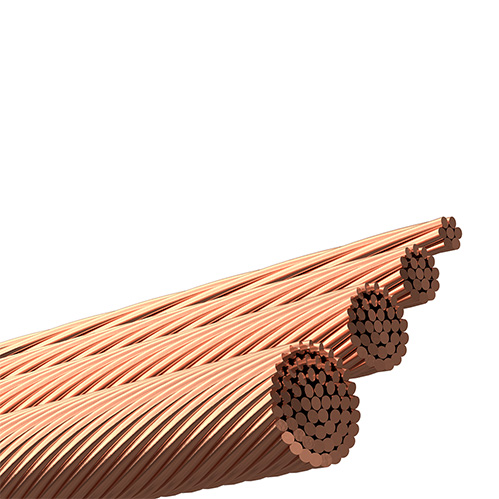

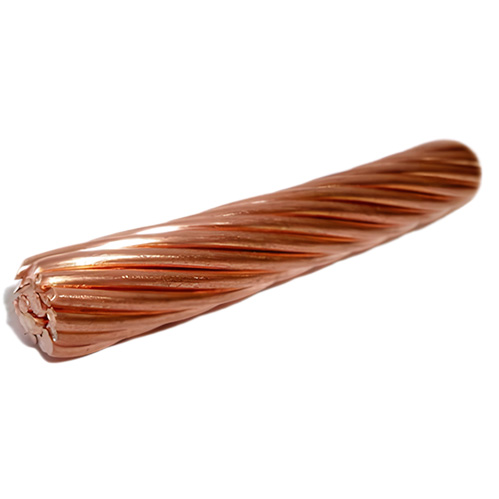

| Bare Conductor: | ACC - All Copper Conductor, IEC 60228 Stranded class2; |
| Standards: | CCC/UL/CE/CNAS/IEC Certificate |
| Additional: | *Customized products are supported. |
|
CONDUCTOR SIZE (MM2) |
STRANDING (MM2) |

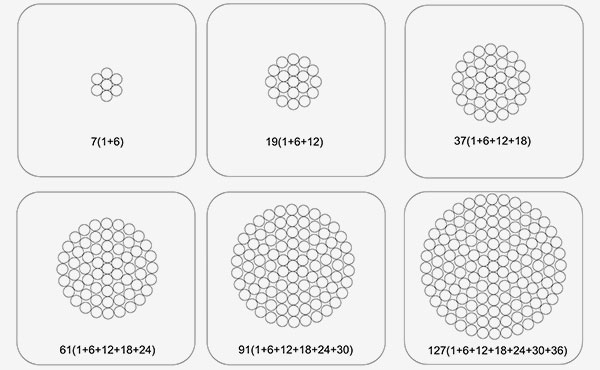

NUMBER OF STRANDS |
WEIGHT (KG/KM) |
OVERALL DIAMETER (MM) |
|
6 |
1.04 |
7 |
58 |
3.00 |
|
10 |
1.35 |
7 |
96 |
4.20 |
|
16 |
1.70 |
7 |
154 |
5.10 |
|
25 |
2.14 |
7 |
240 |
5.90 |
|
35 |
2.52 |
7 |
336 |
7.80 |
|
50 |
1.78 |
19 |
480 |
8.80 |
|
70 |
2.14 |
19 |
672 |
9.80 |
|
95 |
2.52 |
19 |
912 |
12.50 |
|
120 |
2.03 |
37 |
1152 |
12.80 |
|
150 |
2.25 |
37 |
1440 |
14.40 |
|
185 |
2.52 |
37 |
1776 |
16.10 |
|
240 |
2.25 |
61 |
2304 |
19.80 |
|
300 |
2.52 |
61 |
2800 |
20.60 |
|
400 |
2.85 |
61 |
3750 |
26.40 |
|
50 |
3.0 |
7 |
445 |
9.20 |
|
50 |
1.80 |
19 |
405 |
9.20 |
|
70 |
3.55 |
7 |
621 |
10.65 |
|
70 |
2.1 |
19 |
640 |
10.65 |

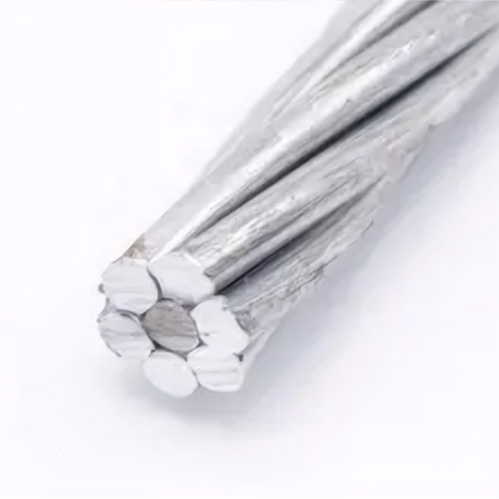

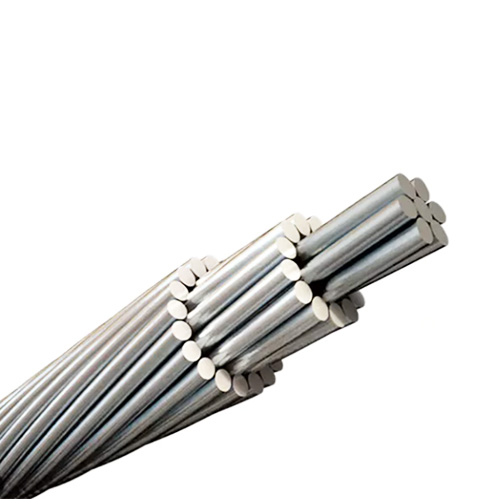

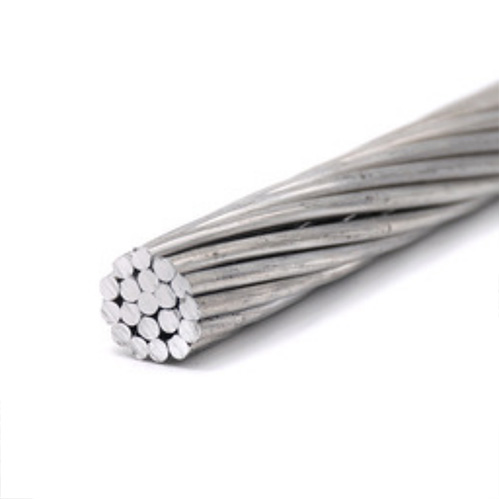

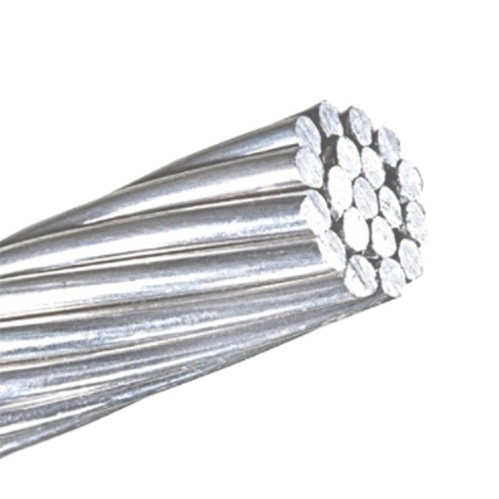

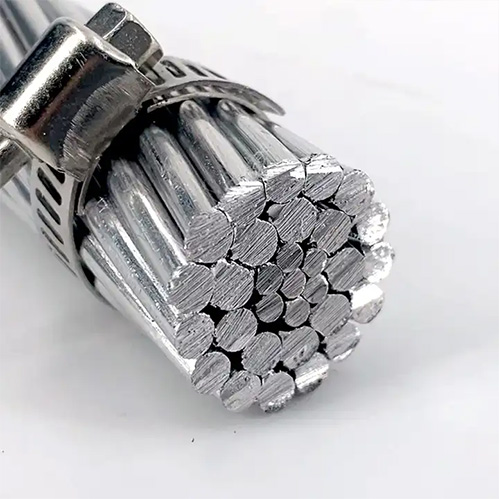

| Bare Conductor: | AAC - All Aluminium Conductor , IEC 60228 Stranded class2; AAAC - Aluminum Alloy Conductor, IEC 60228 Stranded class2;(Optional) |
| Standards: | CCC/UL/CE/CNAS/IEC Certificate |
| Additional: | *Customized products are supported. |
|
Codeword |
Size (AWG or KCMIL) |
No. Of Strands |
Nom. OD (mils) |
Nominal Total Weight (lbs/1000’) |
|
FEACHBELL |
6 AWG |
7 |
183 |
25 |
|
ROSS |
4 AWG |
7 |
231 |
39 |
|
IRIS |
2 AWG |
7 |
292 |
62 |
|
POPPY |
1/0 AWG |
7 |
368 |
99 |
|
ASTER |
2/0 AWG |
7 |
413 |
125 |
|
PHLOX |
3/0 AWG |
7 |
464 |
157 |
|
OXLIP |
4/0 AWG |
7 |
521 |
198 |
|
VALERIAN |
250 KCMIL |
19 |
573 |
234 |
|
DAISY |
266.8 KCMIL |
7 |
585 |
250 |
|
TULIP |
336.4 KCMIL |
19 |
665 |
316 |
|
DAFFODIL |
350 KCMIL |
19 |
678 |
328 |
|
CANNA |
397.5 KCMIL |
19 |
723 |
373 |
|
COSMOS |
477 KCMIL |
19 |
792 |
447 |
|
HYACINTH |
500 KCMIL |
37 |
813 |
468 |
|
DAHLIA |
556.5 KCMIL |
19 |
855 |
523 |
|
MEADOWSWEET |
600 KCMIL |
37 |
891 |
562 |
|
ORCHID |
636 KCMIL |
37 |
917 |
596 |
|
VIOLET |
715.5 KCMIL |
37 |
973 |
671 |
|
PETUNIA |
750 KCMIL |
37 |
996 |
7.3 |
|
ARBUTUS |
795 KCMIL |
37 |
1026 |
745 |
|
COCKSCOMB |
900 KCMIL |
37 |
1092 |
844 |
|
MAGNOLIA |
954 KCMIL |
37 |
1124 |
894 |
|
BLUEBELL |
1033.5 KCMIL |
37 |
1169 |
971 |
|
MARIGOLD |
1113 KCMIL |
61 |
1215 |
1044 |
|
HAWTHORN |
1192.5 KCMIL |
61 |
1258 |
1117 |
|
NARCISSUS |
1272 KCMIL |
61 |
1299 |
1192 |
|
COLUMBINE |
1351 KCMIL |
61 |
1339 |
1266 |
|
CARNATION |
1431 KCMIL |
61 |
1378 |
1342 |
|
COREOPSIS |
1590 KCMIL |
61 |
1452 |
1489 |
|
JESSAMINE |
1750 KCMIL |
61 |
1524 |
1641 |
|
COWSLIP |
2000 KCMIL |
91 |
1630 |
1873 |
|
SAGEBRUSH |
2250 KCMIL |
91 |
1729 |
2128 |
|
PIGWEED |
2300 KCMIL |
61 |
1747 |
2177 |
|
LUPINE |
2500 KCMIL |
91 |
1822 |
2365 |
|
TRILLIUM |
3000 KCMIL |
127 |
1998 |
2840 |
|
BLUEBONNET |
3500 KCMIL |
127 |
2158 |
3344 |
|
BRITISH ANT |
52.79 MMSQ |
7 |
366 |
98 |

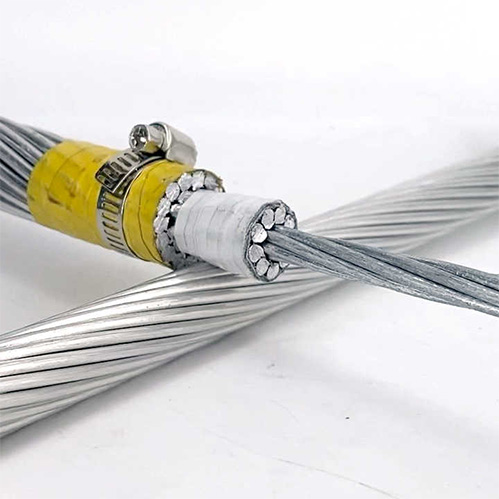

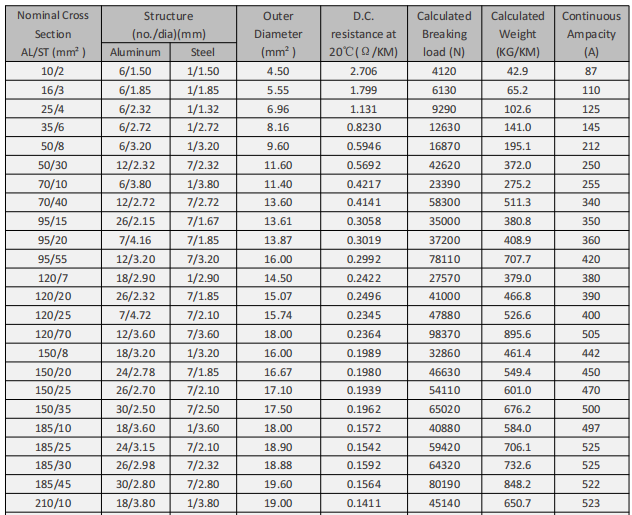

| Bare Conductor: | ACSR - Aluminum Conductor Steel reinforced, IEC 60228 Stranded class2; |
| Standards: | CCC/UL/CE/CNAS/IEC Certificate |
| Additional: | *Customized products are supported. |
|
20,000 km/year
Annual Production
|
60+
Production Lines
|
99.8%
QC Pass Rate
|
30
R&D Engineers
|
From high-purity materials to advanced manufacturing processes, we ensure every cable delivers top-tier performance and long-term reliability.
Our cables are flame retardant, eco-friendly, and fully compliant with international safety standards, ensuring peace of mind for your projects.
We provide tailored cable solutions to meet your exact specifications, ensuring optimal performance for your unique applications.
Certified by CCC, ISO, IEC etcs. our products meet the highest global quality and safety benchmarks.
With 24/7 customer support, technical expertise, and a one-year warranty, we are committed to your success every step of the way.
As a leading global cable manufacturer, Huanghe Cable combines cutting-edge technology with decades of expertise to deliver high-performance cables and reliable service. Whether you're a distributor, trader, or contractor, we are your trusted partner for all your power transmission needs.
At Huanghe Cable, we don’t just sell cables, we deliver solutions that power your projects and drive your success. Contact us today to request a quote, discuss your requirements, or learn more about how we can support your business.
Please contact us for a free quotation by the below form. We promise the quickest response within 8 hours.
