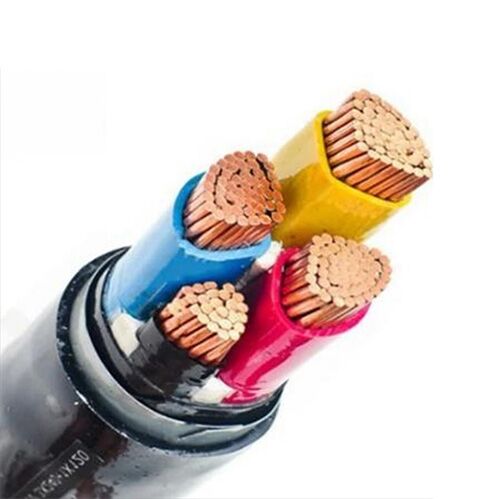

PVC Insulated Electric Cable

Voltage: 0.6KV-3KV
Conductor: Cu or AL
Insulation: PVC (Polyvinyl Chloride)
Sheath: PVC or PE or LSZH
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported

PVC Cable Models

Description

Cores

Cross Section Area

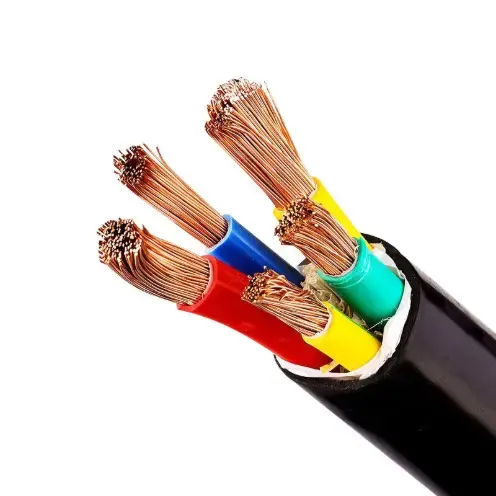

Cu/pvc/pvc

copper core, pvc insulated,
pvc sheathed cable

1 core
2 cores
3 cores
4 cores
5 cores
3+1 cores
3+2 cores
4+1 cores

0.5~1000mm2

Al/pvc/pvc

Aluminum core, pvc insulated,
pvc sheathed cable

Cu/pvc/sta/pvc

copper core, pvc insulated, steel tape armoured,

pvc sheathed cable

4~1000mm2

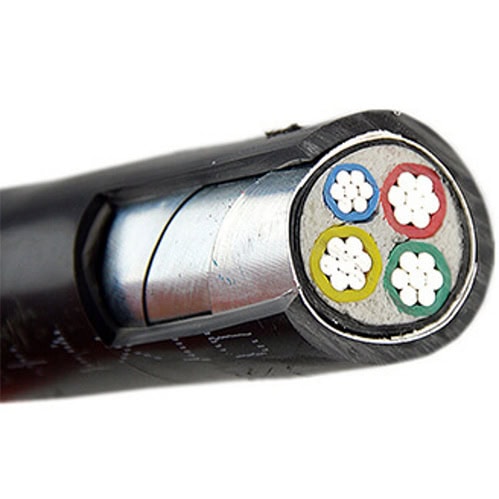

Al/pvc/sta/pvc

aluminum core, pvc insulated, steel tape armoured,

pvc sheathed cable

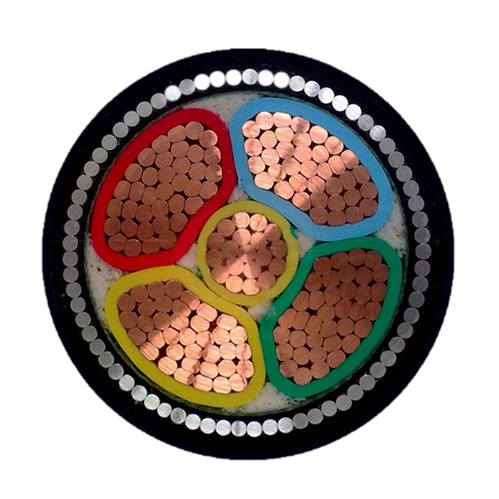

Cu/pvc/swa/pvc

copper core, pvc insulated, steel wire armoured,

pvc sheathed cable

Al/pvc/swa/pvc

aluminum core, pvc insulated, steel wire armoured,

pvc sheathed cable

Note: Flame retardant cable , fire resistant, Low Smoke halogen free cable are also available.

Rated Voltage: 0.6-3kV
Conductor: Copper or Tinned Copper or Aluminum
(solid class1, stranded class2, flexible class5)
Insulation: Polyvinyl chloride (PVC)
Armour Type (optional): steel tape armoured (sta)
steel wire armoured (swa)
Aluminum wire armored (AWA)
Outer Sheath: Polyvinyl chloride (PVC)
LSZH/FR (optional)
PE (Polyethylene) (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported.

Temperature

XLPE Material:

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

Min.Bending Radius

Item

Single Core

Multi core

Unarmored

Armored

Unarmored

Armored

Min.Bending Radius When installation

20D

15D

15D

12D

Minimum bending radius of the cable near the connection box and terminal (bending should be carefully controlled, such as with a formed guide)

15D

12D

12D

10D

* D means Overall diameter of cables

  • High Purity thick raw materials

    99.99% Copper/99.6% Aluminum Safety,low resistance,stable voltage,more power saving

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity

  • Safer use, Flame Retardant and environment friendly

    All new and high quality sheath,Wear-resistant and oil-resistant, soft and easy to install

  • High cost-effectiveness

    Environment friendly,safer use, better quality, low cost and sooner delivery

  • International standard meet different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC(China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group support you always

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.
