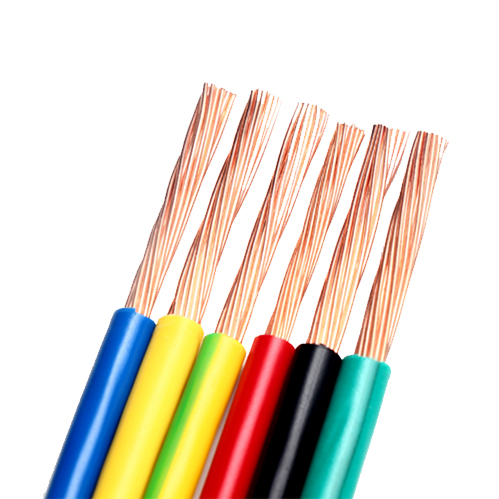

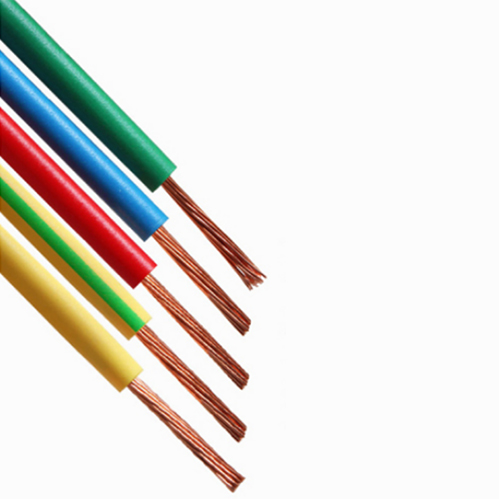

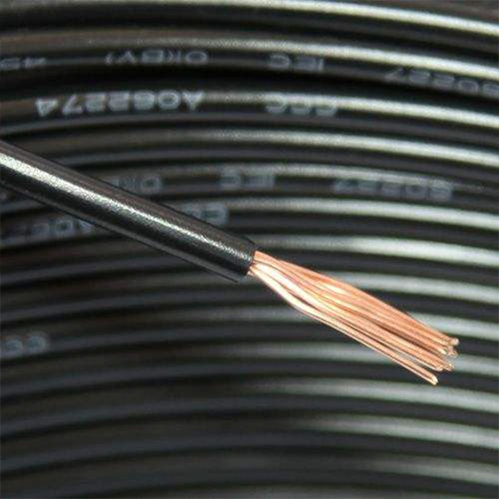

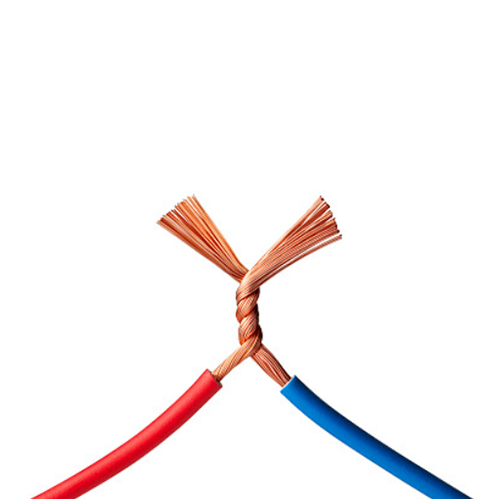

Flexible Electrical Wire

Voltage: 0.3/0.5KV 0.45/0.75KV 0.6/1KV
Conductor: Flex Copper Conductor
Insulation: Polyvinyl chloride (PVC)/Cross Linked Polyethylene(XLPE)
Sheath: (Optional):PVC or XLPE or LSZH
Color: Red, Yellow, Blue, Green, Black, White, Yellow/Green etc
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported

Flexible Wire Cable

Voltage

Models

Description

Cores

Nominal Section
Area

from

300v to 600V









BVR

flexible copper conductor, pvc insulated

single core,

2 core, 3 core, 4 core, 5 core

0.5mm², 0.75mm²
1mm², 1.5mm²
2.5mm², 4mm²
6mm², 10mm²

16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²

BVVR

flexible copper conductor, pvc insulated, pvc sheathed

FR-BVVR

flexible copper conductor, mica, flame retardant low smoke halogen free compound, flame retardant low smoke halogen free compound

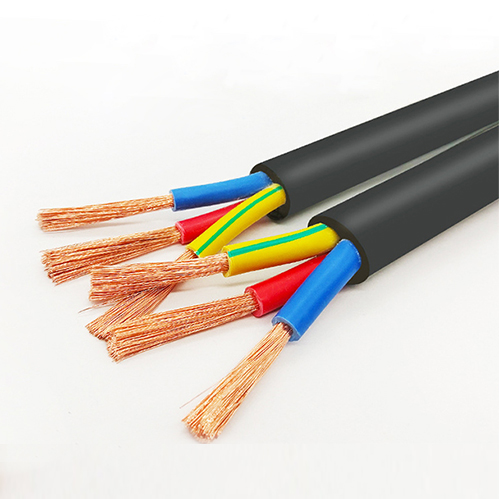

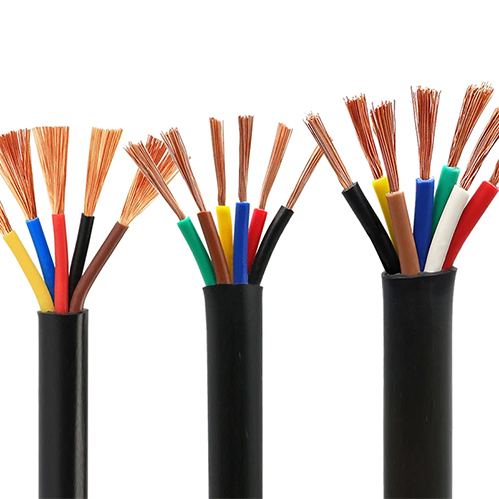

FLEXIBLE CORE WIRE CABLE

Voltage: 0.3/0.5KV 0.45/0.75KV 0.6/1KV
Conductor: Flexible annealed or Tinned Copper class5;
Stranded class2(optional);
Solid class1(optional);
Outer Layer: Polyvinyl chloride (PVC)
XLPE (crosslinked polyethylene) (optional)
LSZH (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *FR, FRLS,LSZH, LSOH, LSHF,anti-termite cables are also available.
*Customized products are supported.

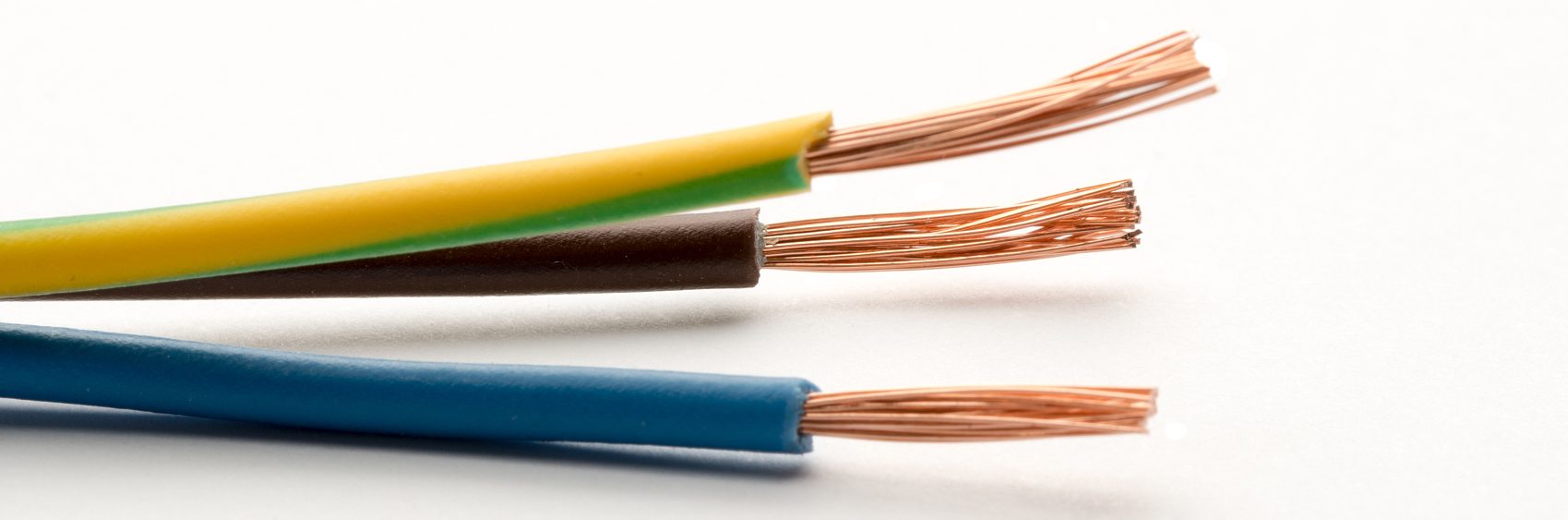

电缆切割剥线准备

Temperature

XLPE Material:

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃(max. 5s)

Min. service temperature: -40℃(fixed and protected installations)

  • High Purity thick raw materials

    High Purity IEC60228 Raw materials, Safety,low resistance,stable voltage,more power saving

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity

  • Safer use, Flame Retardant and environment friendly

    All new and high quality sheath,Wear-resistant and oil-resistant, soft and easy to install

  • High cost-effectiveness

    Environment friendly,safer use, better quality, low cost and sooner delivery

  • International standard meet different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC(China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group support you always

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.

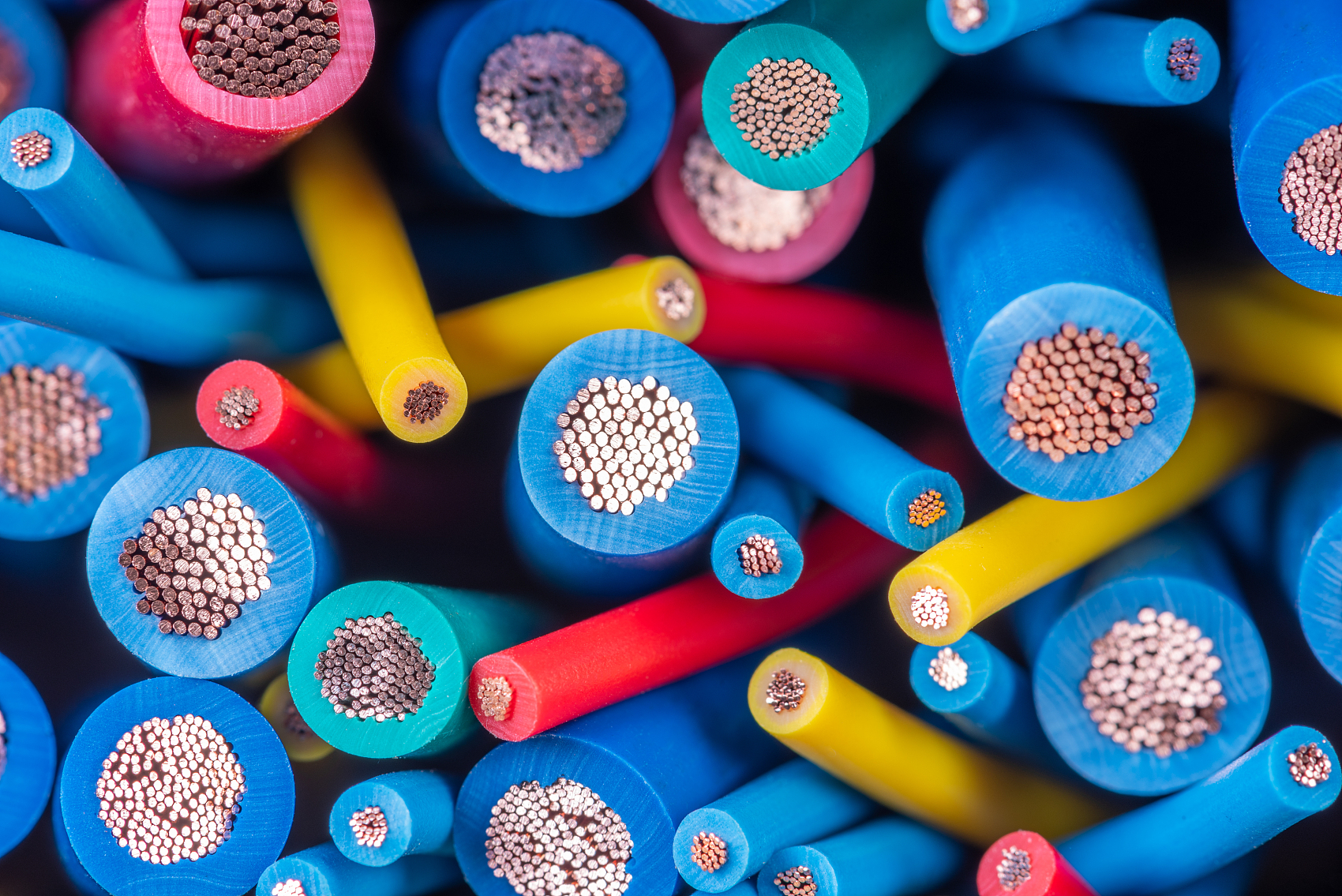

    电气铜电缆宏截面
