Huanghe Cable supplies premium silicone rubber insulated and sheathed cables (YGZ & YGC series) engineered to withstand temperatures from -60°C to +180°C. Featuring superior thermal aging resistance, exceptional flexibility, and custom IEC-compliant constructions.
Huanghe Cable supplies silicone rubber cable solutions for industrial equipment and specialized electrical applications. Our core range covers the YGZ and YGC series for the Chinese market, together with European harmonized H05S series types available on request. The tables below summarize model designations, construction and typical selection parameters. Exact dimensions, ratings and certification requirements must be confirmed against the applicable product specification before ordering.
| Model | Conductor | Insulation | Outer Sheath | Core Count | Cross-section | Voltage Rating | Application |
|---|---|---|---|---|---|---|---|
| YGZ | Flexible tinned copper, Class 5 | Silicone rubber | Silicone rubber | 2–61 (varies by size) | 0.75–2.5 mm² (typical) | 300/500V, 450/750V, 0.6/1kV | Medium-duty mobile electrical equipment and power tools in high-temperature areas with moderate mechanical stress |

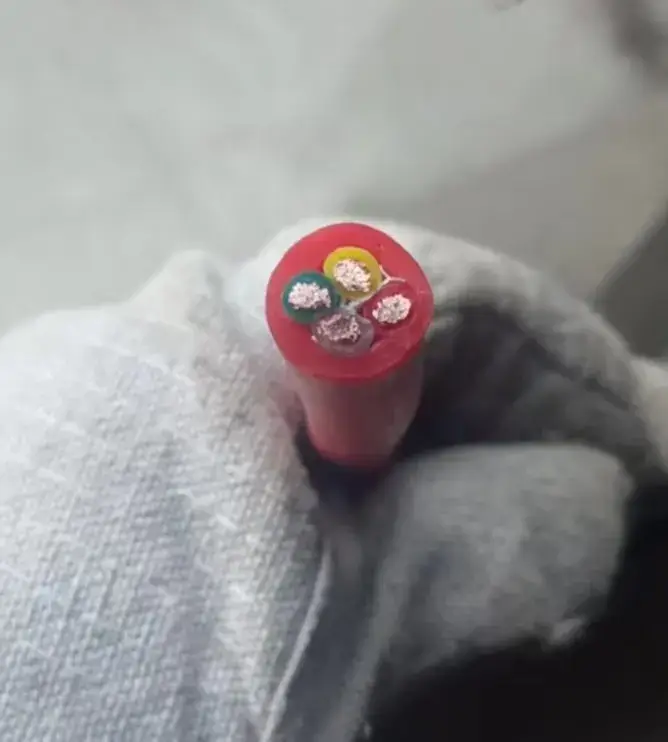

| YGC | Flexible tinned copper, Class 5 | Silicone rubber | Silicone rubber | 2–5 (for large cross-sections) | 4–240 mm² (up to 240 mm²) | 300/500V, 450/750V, 0.6/1kV | Heavy-duty mobile equipment requiring high mechanical withstand in high-temperature environments (metallurgy, steel plants, crane festoon systems) |
YGZ and YGC are the key series in our silicone rubber cable range. All three voltage classes (300/500V, 450/750V and 0.6/1kV) are available; the applicable rating, conductor construction, core count and cross-section should be confirmed for the selected model before ordering. YGC is available up to 240 mm².
| Model | Conductor | Insulation | Outer Sheath | Core Count | Cross-section | Voltage Rating | Application |
|---|---|---|---|---|---|---|---|

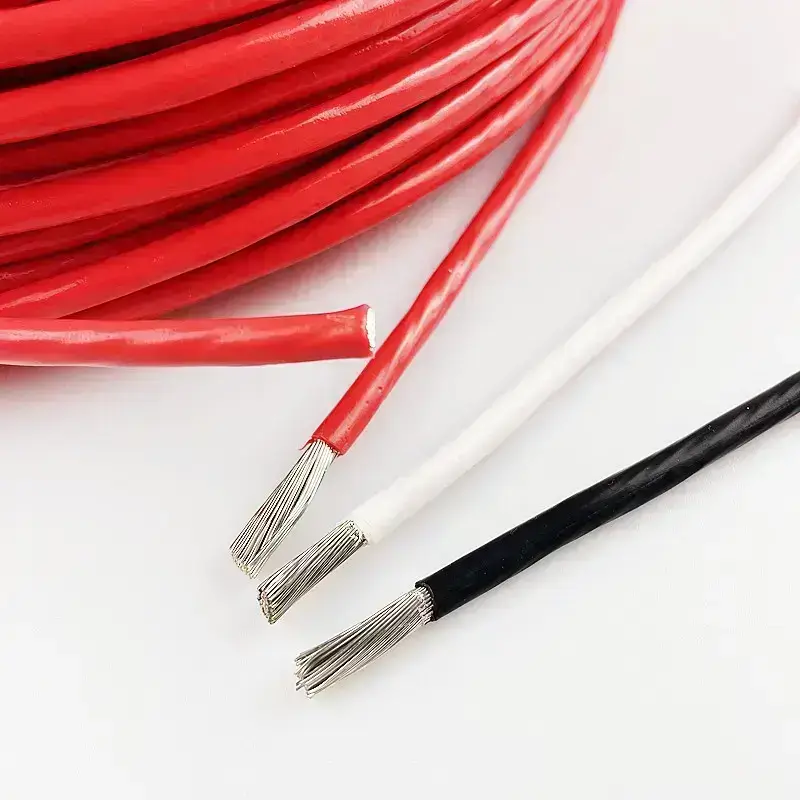

| H03S-K | Class 5 flexible copper (bare or tinned) | Silicone rubber | No separate sheath | 1 | 0.5–2.5 mm² | 300/300V | Internal wiring of high-temperature appliances (ovens, heaters) |
| H05S-K | Class 5 flexible conductor | Silicone rubber | No separate sheath | 1 | 0.5–240 mm² | 300/500V | Fixed or flexible installation, electrical connection in high-temperature areas |
| H05SJ-K | Class 5 flexible conductor | Silicone rubber | No separate sheath (glass-fibre braid over insulation) | 1 | 0.5–95 mm² | 300/500V | Fixed wiring requiring additional mechanical protection from the glass-fibre braid |
| H05SS-K | Class 5 flexible conductor | Silicone rubber | Silicone rubber | 1 | 0.5–2.5 mm² | 300/500V | Applications requiring double-layer insulation protection with a silicone outer sheath |
H05S series types are supplied on request. These designations have different conductor and construction requirements. Confirm the applicable harmonized standard, rated voltage, dimensions and approval requirements before specifying or ordering a particular type.
| Cable Type | Conductor | Insulation | Additional Layer | Outer Sheath | Core Count | Cross-section | Voltage Rating | Application |
|---|---|---|---|---|---|---|---|---|
| Shielded Silicone Rubber Cable | Class 5 tinned copper | Silicone rubber | Tinned copper wire braid; coverage to be confirmed | Silicone rubber | 2–37 (typical) | 0.5–2.5 mm² | 300/500V | Signal and control circuits near VFDs or servo motors requiring EMI protection |
| Reinforced Silicone Rubber Cable | Flexible copper conductor | Silicone rubber | Two separately insulated steel reinforcement cores, as specified | Silicone rubber | 3–5 (including reinforcement cores) | 1.5–50 mm² | 450/750V | Crane, festoon and reel/trailing cable systems with frequent dragging or winding, requiring resistance to longitudinal tensile force |
Shielding and reinforcement are optional construction features and are not included in every silicone rubber cable. Drag-chain and reel applications are available with silicone construction; specify the dynamic duty requirements (bending cycles, travel speed, tensile load) for confirmation. Need special core counts, custom colors, or higher temperature ratings up to +200°C? Contact our engineering team for custom manufacturing.
Send us your cable model, conductor size, core configuration, rated voltage and application. Technical drawings or existing datasheets can help us review your requirements more accurately.
Silicone rubber cable constructions can be configured with flexible conductors, silicone rubber insulation and specified outer protection. Shielding and reinforcement are available for selected designs, depending on the required cable structure and application.
Note: Shielding, reinforcement, separators and an outer sheath are construction-dependent features. Please confirm the required cable structure against the applicable drawing or technical specification.
Huanghe Cable supplies silicone rubber cables for industrial equipment and specialized electrical connections. Depending on the specified design, options include flexible copper conductors, silicone rubber insulation and sheathing, braided shielding, and reinforced constructions. Final performance depends on the selected cable structure and confirmed technical specifications.
Silicone rubber insulation and sheathing are selected for cable designs requiring heat resistance and flexibility. The permissible operating temperature depends on the specific compound, cable construction, and applicable product requirements.
Flexible copper conductors can be specified for applications requiring easier cable routing and bending. Conductor class, core arrangement, and minimum bending radius should be selected according to the cable model and installation conditions.
Silicone rubber insulation provides the dielectric layer around the conductor. Voltage rating, insulation thickness, and electrical test requirements must be confirmed for the selected YGZ, YGC, or customer-specified cable design.
Silicone rubber cable designs can be considered for equipment and industrial environments where temperature variation and environmental exposure are important. Suitability for outdoor use, ozone exposure, oils, or specific chemicals should be verified against the selected compound and project requirements.
For applications requiring electromagnetic shielding, selected constructions can incorporate a tinned copper wire braid between the silicone rubber insulation and outer sheath. Braid coverage and shielding performance can be specified according to the technical drawing or application requirements.
Selected special designs can incorporate two separately insulated steel reinforcement cores within the cable structure. This construction is available for specific requirements and should be assessed against the intended installation and mechanical loading conditions.
Huanghe Cable focuses on YGZ and YGC series silicone rubber cables and can review other customer-specified models and constructions. Conductor size, number of cores, voltage rating, shielding, reinforcement, sheath requirements, and applicable standards should be confirmed before production.
Established in 1980, Huanghe Cable manufactures power and industrial cables, including customized cable constructions. For silicone rubber cable projects, production details and inspection requirements are reviewed against the selected model, technical drawing, and application.
Huanghe Cable focuses on YGZ and YGC series silicone rubber cables, with technical review available for customer-specified models and special constructions.
Material and conductor requirements are reviewed against the specified cable construction and applicable technical requirements.
Relevant production checks may include conductor and insulation dimensions, layer uniformity, and construction conformity, as applicable to the product.
Electrical tests are determined by the cable model and applicable specification. Required test items should be confirmed before production and delivery.
Factory inspection documentation can be discussed according to the order requirements, including applicable test reports and agreed inspection arrangements.
Looking for a silicone rubber cable manufacturer? Send Huanghe Cable your model number, technical drawing, or application requirements for a specification review and quotation.
Established in 1980, Huanghe Cable manufactures cables for power and industrial applications. Our silicone rubber cable solutions focus on YGZ and YGC series, with technical review and customized construction options for project-specific requirements.
Founded in 1980, Huanghe Cable manufactures cables for different industrial and power applications. Customers can discuss silicone rubber cable requirements directly with the manufacturer, helping clarify construction details before quotation and production.
Our key silicone rubber cable product lines include YGZ and YGC. Model selection and construction details can be reviewed according to the required conductor size, core configuration, voltage rating, operating conditions, and applicable technical specification.
Cable construction can be reviewed for project-specific requirements, including flexible copper conductors, silicone rubber insulation and sheathing, and selected special designs with tinned copper wire braid shielding or separately insulated steel reinforcement cores.
Send your cable model, drawing, or technical requirements for review. We can clarify conductor size, number of cores, insulation and sheath construction, shielding requirements, and other details before confirming the proposed product specification.
Manufacturing and inspection requirements are matched to the selected cable design. Relevant checks may cover conductor and insulation dimensions, construction conformity, and specified electrical tests, with inspection documentation discussed according to project requirements.
For project and bulk purchasing, provide the required cable model, quantity, destination, and delivery terms. Huanghe Cable can review the inquiry and discuss quotation details, packaging, shipping arrangements, and the required export documents.
Send us your YGZ or YGC model, conductor size, core configuration, technical drawing, or application details. Our team can review your requirements and discuss a suitable cable construction and factory quotation.
