Aluminum Electric Cable

Voltage: 1KV-35KV
Conductor: Aluminum Conductor
Insulation: Crosslinked Polyethylene (XLPE) or Polyvinyl chloride (PVC) or Polyethylene (PE)
Armour Type (optional): sta, swa, awa
Outer Sheath: PVC or PE or LSZH
Standards: CCC/UL/CE/CNAS/IEC Certificate
*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported.

O.6/1kV Aluminum Conductor XLPE Insulated Cable

Aluminum Cable Models

Description

Cores

Cross Section Area

Al/xlpe/pvc

aluminum core,

xlpe insulated,
pvc sheathed cable

1 core
2 cores
3 cores
4 cores
5 cores
3+1 cores
3+2 cores
4+1 cores

0.5~1000mm²

Al/xlpe/sta/pvc

aluminum core,

xlpe insulated, steel tape armoured,

pvc sheathed cable

4~1000mm²

Al/xlpe/swa/pvc

aluminum core, xlpe insulated, steel wire armoured,

pvc sheathed cable

Note: Flame retardant cable and fire resistant cable are also available.

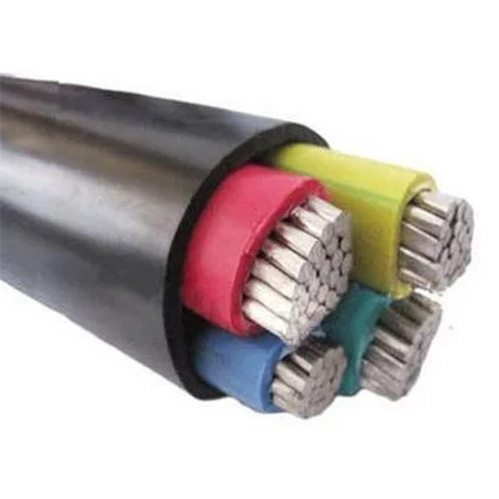

O.6/1kV Aluminum Conductor PVC Insulated Cable

Aluminum Cable Models

Description

Cores

Cross Section Area

Al/pvc/pvc

aluminum core,

pvc insulated,
pvc sheathed cable

1 core
2 cores
3 cores
4 cores
5 cores
3+1 cores
3+2 cores
4+1 cores

0.5~1000mm²

Al/pvc/sta/pvc

aluminum core,

pvc insulated, steel tape armoured,

pvc sheathed cable

4~1000mm²

Al/pvc/swa/pvc

aluminum, pvc insulated, steel wire armoured,

pvc sheathed cable

Note: Flame retardant cable and fire resistant cable are also available.

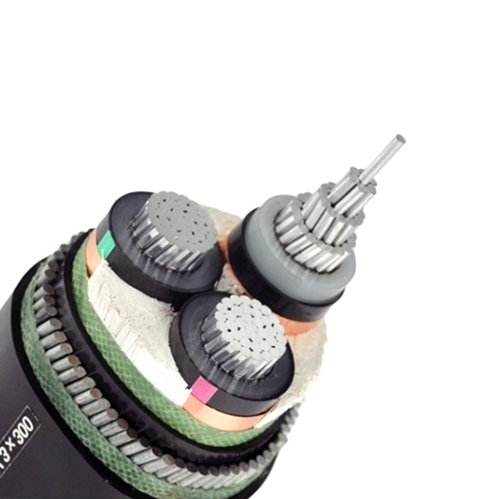

Medium Voltage Aluminum Conductor XLPE Insulated Cable

Aluminum Cable Models

Description

Cores

Cross Section Area

Al/xlpe/pvc

aluminum core,

xlpe insulated,
pvc sheathed cable

1 core

(sta, awa)

3 cores

(sta, swa, awa)

35~1000mm²

Al/xlpe/sta/pvc

aluminum core, xlpe insulated, steel tape armoured,

pvc sheathed cable

Al/xlpe/swa/pvc

aluminum core, xlpe insulated, steel wire armoured,

pvc sheathed cable

Al/xlpe/awa/pvc

aluminum core, xlpe insulated, aluminum wire armoured,

pvc sheathed cable

Note: Flame retardant cable and fire resistant cable are also available.

Low Voltage Aluminum Cable Structure

Voltage: 1kV ~3kV
Conductor: Aluminum Conductor
(solid class1, stranded class2 )
Insulation: Crosslinked Polyethylene (XLPE)
Polyvinyl Chloride (PVC) (optional)
Polyethylene (PE) (optional)
Shield Layer (optional): Copper tape(CTS)
Copper Wire Braided (CWB)
Armour Type (optional): steel tape armoured (sta)
steel wire armoured (swa)
aluminum wire armoured (awa)
Outer Sheath: Polyvinyl Chloride (PVC)
PE (Polyethylene) (optional)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported.

Medium Voltage Aluminum Cable Structure

Voltage: 3.6kV ~35kV
Conductor: Aluminum Conductor
Insulation: Crosslinked Polyethylene (XLPE)
Shield Layer: Copper Tape Shield(CTS)
Copper Wire + Copper Tape Helically Shield (optional)
Armour Type (optional): steel tape armoured (sta)
steel wire armoured (swa)
Aluminum wire armoured (awa)
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE/CNAS/IEC Certificate
Additional: *FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported.

Temperature

XLPE Material:

Max. service temperature: 90 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 250℃ (max. 5s)

Min. service temperature: -40℃ (fixed and protected installations)

PVC Material

Max. service temperature: 70 ℃

Min.temperature when installation: 0℃

Max. short-circuit temperature: 160℃ (max. 5s)

Min. service temperature: -40℃ (fixed and protected installations)

Min.Bending Radius

Item

Single Core

Multi core

Unarmored

Armored

Unarmored

Armored

Min. Bending Radius When installation

20D

15D

15D

12D

Minimum bending radius of the cable near the connection box and terminal (bending should be carefully controlled, such as with a formed guide)

15D

12D

12D

10D

* D means overall diameter of cables.

  • High purity thick raw materials

    99.99% Copper/99.6% Aluminum Safety, low resistance, stable voltage, more power saving.

  • Low eccentricity, uniform thickness

    Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity.

  • Safer use, flame retardant and environment friendly

    All new and high quality sheath, water-resistant and oil-resistant, soft and easy to install.

  • High cost-effectiveness

    Environment friendly, safer use, better quality, low cost and sooner delivery.

  • International standard meets different needs.

    Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC (China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

  • Quick response within 24hours.

    Huanghe Cable Group supports you always.

  • Product warranty for one year if the product is correctly installed and used.

  • Professional Team

    Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.

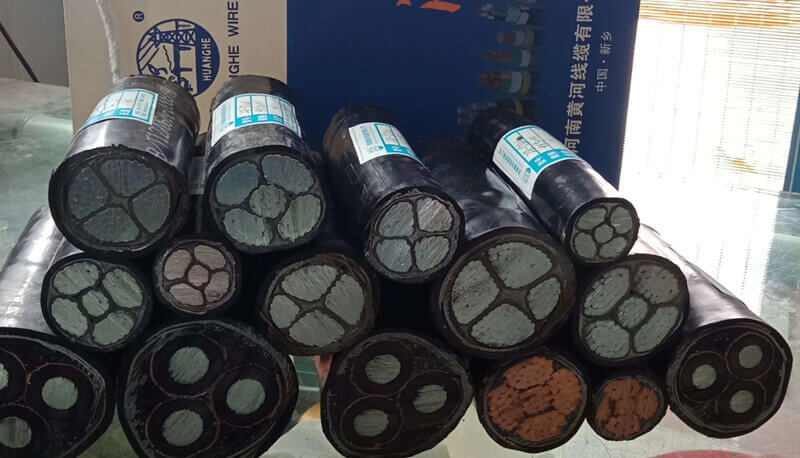

The Differences Between Aluminum Cable and Copper Cable

A: Load Power

The load power of copper cable is larger than that of aluminum cable with the same sectional area.

A: Flexibility

Copper cable has the characteristics of better flexibility, strong fatigue and easy bending. And aluminum cable is relatively easy to break when bent.

A: Stability

Aluminum cable is easy to oxidize which increase the resistance, reduces the load and is pone to safety problems. But copper cable is extremely stable.

A: Resistivity

The resistivity of the copper cable is small, which is lower than 1.68 times that of the aluminum cable, which causes the power loss of the aluminum cable to be relatively large, and the heat is more serious, which affects the utilization rate of electricity.

A: Price

The price of copper cable is generally many times that of aluminum cable.

A: Weight

The density of copper is relatively large, and the weight of the copper cable is much heavier than that of aluminum cable.
